PARTIAL GROTRIAN DIAGRAMS OF ASTROPHYSICAL INTEREST


Partial Grotrian Diagrams of Interest - Charlotte E. Moore and Paul W. Merrill (1968)

From Partial Grotrian Diagrams of Astrophysical Interest, Moore, C.E. & Merrill, P.W., NSRDS National Bureau of Standards, Vol. 23 (1968)


Diagram Key
A I
A II Ne II, A II
Be II Li I, Be II, C IV, N V, O VI, Na I, K I, Rb I, Cs I
C II B I, C II, N II, O IV
C III B I, C II, N II, O IV
C IV Li I, Be II, C IV, N V, O VI, Na I, K I, Rb I, Cs I
Ca I Mg I, Ca I, Sr I, Ba I
Ca II K I, Ca II, Sr II, Ba II
Co I

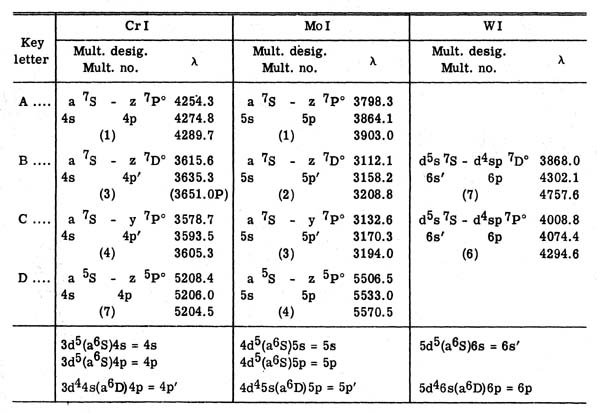

Cr I Cr I, Mo I, W I
Cr II Cr II, Mo II
Fe I
Fe II
Fe III
H

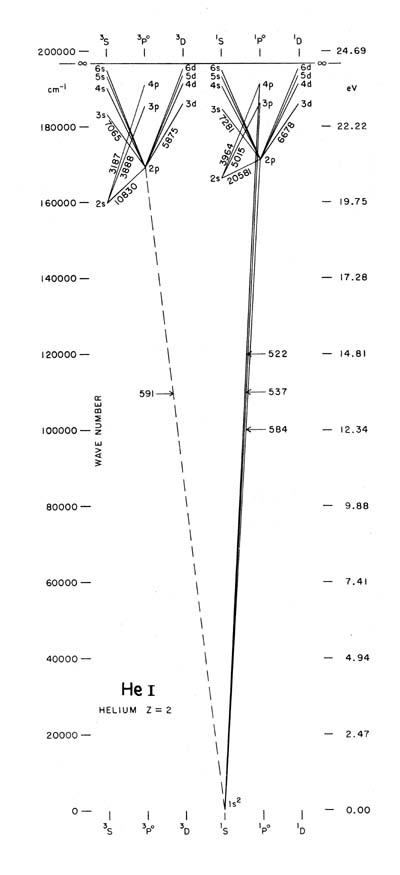

He I
He I (all multiplets)
He I (singlet)
He I (triplet)
Li I Li I, Be II, C IV, N V, O VI, Na I, K I, Rb I, Cs I

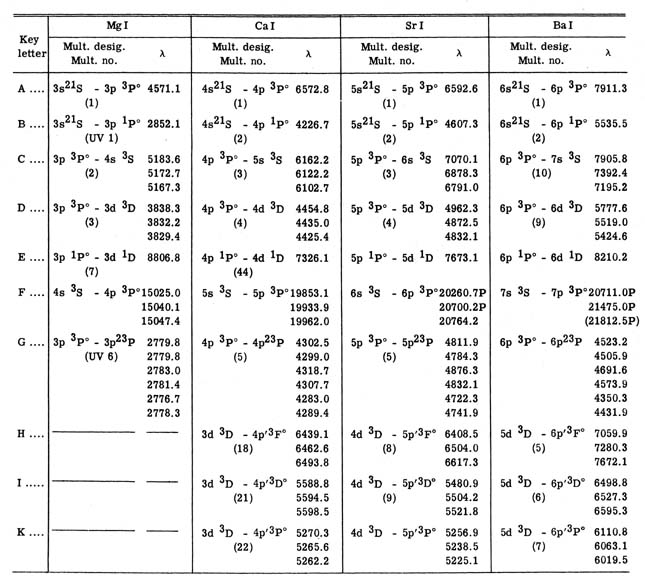

Mg I Mg I, Ca I, Sr I, Ba I
Mg I, Al II, Si III
Mg II Na I, Mg II, Al III, Si IV

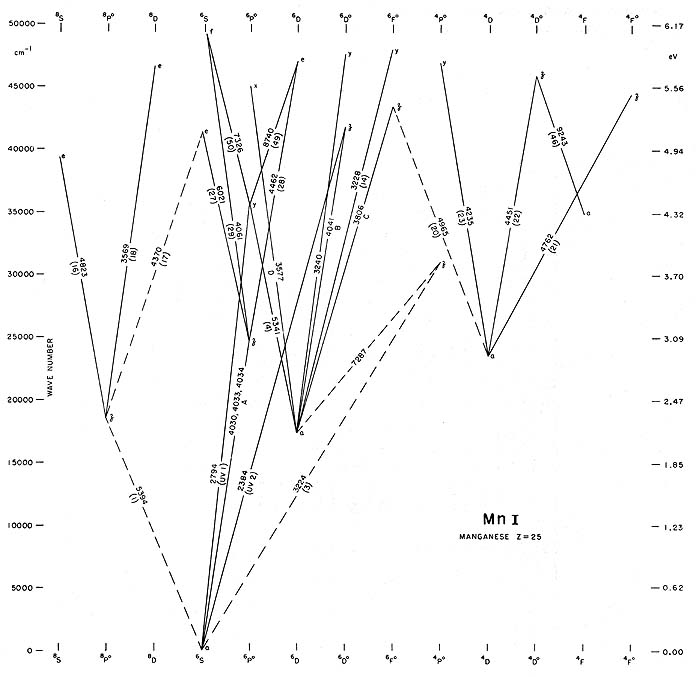

Mn I Mn I, Tc I, Re I
Mn II Mn II, Tc II, Re II
N II B I, C II, N II, O IV
C I, N II, O II, Ne V
Ne II
Ni I
Ni II
O I O I, Ne III, Na IV, Mg V
O II C I, N II, O II, Ne V
N I, O II, Ne IV
O III

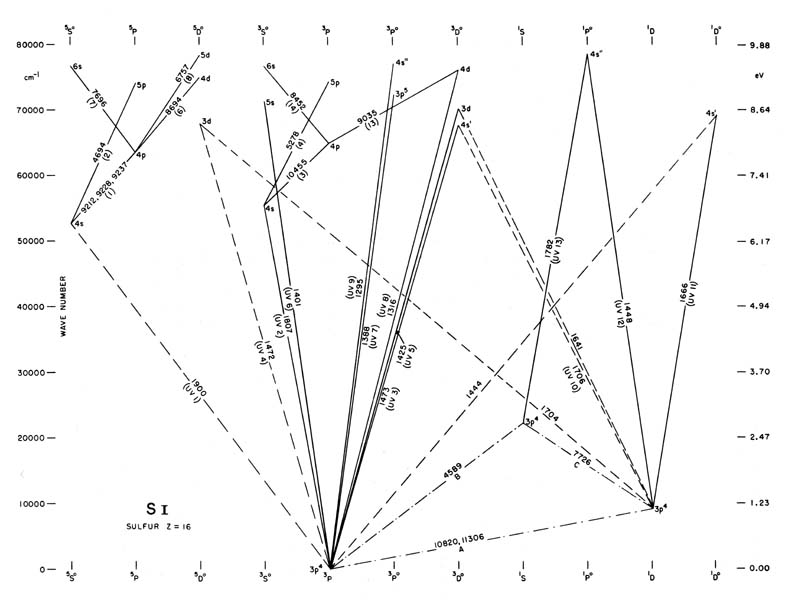

S I S I, Cl II, A III, K IV, Ca V
S II P I, S II, Cl III, A IV, K V
Sc I Sc I, Y I, La I
Sc II Sc II, Y II, La II
Si I Si I, P II, S III, Cl IV, A V
Si II Al I, Si II,Al I, Ga I, In I

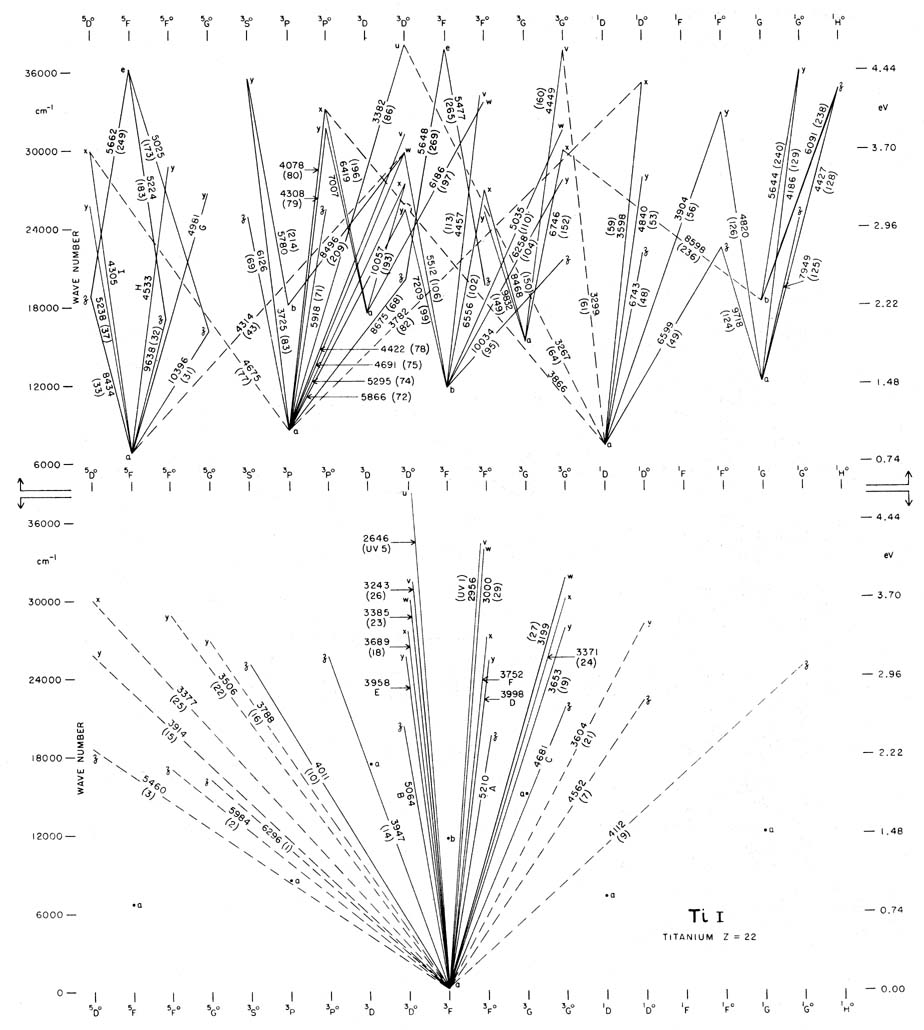

Ti I Ti I, Zr I

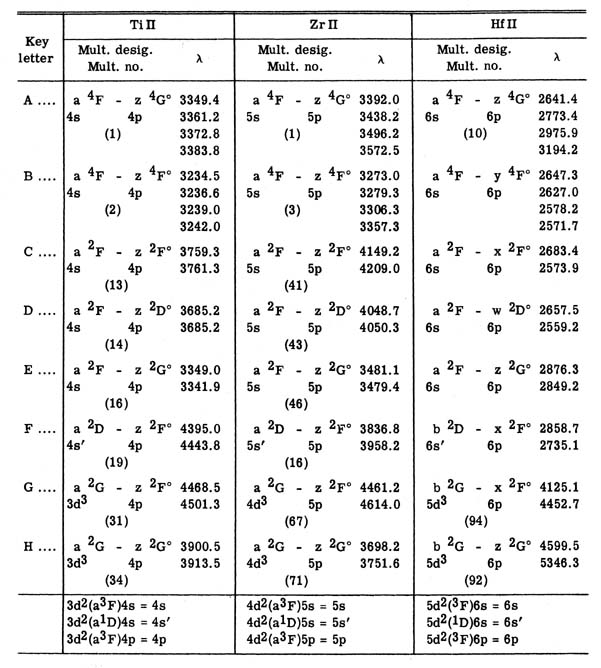

Ti II Ti II, Zr II, Hf II
V I V I, Nb I
V II V II, Nb II
