Spectral data in NED archive for object UGC 09385


DSS Image & Aperture/Beam


PA = N/A

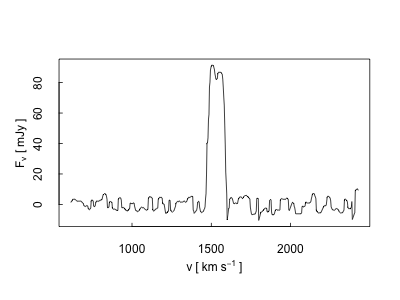

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII20.3kb
NED-ASCII69.9kb
VOTable65.6kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m22.79s+05d16m35.59s14h35m22.79s+05d16m35.59s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
218.8449385.276552

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-Feed system
Start Channel: 612.4 km s-1Disperser Type: N/A
End Channel: 2426.8 km s-1Detector Type: Correlator
Channel Step: 3.3 km s-1Observation Mode: Aperture
Spectral Resolution: 8.0 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 37666.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 300 secNumber of Pixels: 543
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1987ApJS...63..515L
Notes: Profiles of new observations after Hanning smoothing. A polynominal baseline and occasional interference spikes have been removed.

DSS Image & Aperture/Beam


PA = N/A

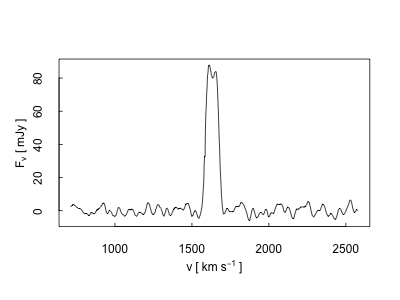

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII22.1kb
NED-ASCII76.2kb
VOTable71.5kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m22.79s+05d16m35.59s14h35m22.79s+05d16m35.59s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
218.8449385.276552

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-Feed system
Start Channel: 711.8 km s-1Disperser Type: N/A
End Channel: 2580.3 km s-1Detector Type: Correlator
Channel Step: 3.2 km s-1Observation Mode: Aperture
Spectral Resolution: 8.2 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 36763.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 300 secNumber of Pixels: 592
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1983AJ.....88..962L
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII9.6kb
NED-ASCII33.0kb
VOTable31.2kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m22.79s+05d16m35.59s14h35m22.79s+05d16m35.59s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
218.8449385.276552

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: NRAO 91m
Band (Line): Radio(H I)Instrument Name: Autocorrelator
Start Channel: 1157.3 km s-1Disperser Type: N/A
End Channel: 2428.8 km s-1Detector Type: Correlator
Channel Step: 5.0 km s-1Observation Mode: Beam
Spectral Resolution: 22.0 km s-1Aperture/Beam Size: 600.0 arcsec
Mean Resolving Power: 13710.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 240 secNumber of Pixels: 255
Flux Units: JyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1979ApJ...231..327T
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

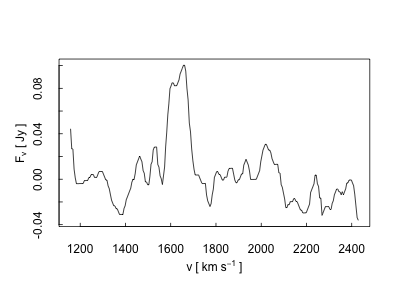

Spectrum Preview



Retrieve Data

FITS N/A
Author-ASCII13.9kb
NED-ASCII25.4kb
VOTable N/A

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m22.79s+05d16m35.59s14h35m22.79s+05d16m35.59s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
218.8449385.276552

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Green Bank 91m
Band (Line): Radio(H I)Instrument Name: Autocorrelator
Start Channel: 1494.2 km s-1Disperser Type: N/A
End Channel: 1767.5 km s-1Detector Type: Correlator
Channel Step: 0.7 km s-1Observation Mode: Beam
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 642.0 arcsec
Mean Resolving Power: 27404.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 370
Flux Units: 0.01KReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1988ApJS...67....1T
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

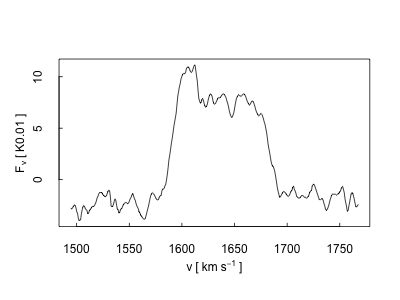

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII23.5kb
NED-ASCII65.9kb
VOTable61.9kb
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m22.80s+05d16m36.00s14h35m22.79s+05d16m35.60s
Origin:Published_Value
System:Equatorial
Type:Decimal-degrees
Equinox:J2000
218.8450005.276667

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-feed system
Start Channel: 1069.6 km s-1Disperser Type: N/A
End Channel: 2134.1 km s-1Detector Type: Correlator
Channel Step: 2.1 km s-1Observation Mode: N/A
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 27401.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 512
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: No
Sky Subtraction: N/AQuality Flag(s): N/A
Reference: 2005ApJS..160..149S
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

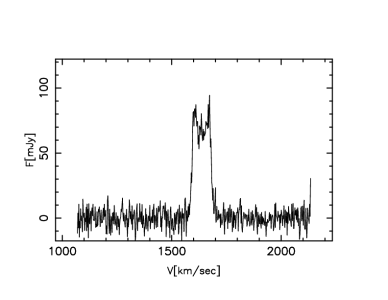

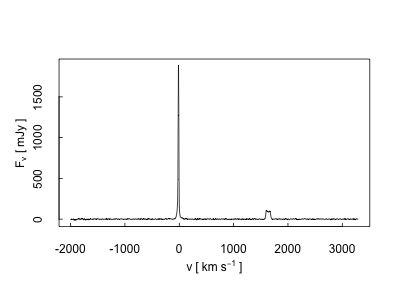

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII46.0kb
NED-ASCII131.5kb
VOTable123.1kb
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 09385UGC 09385
Position (J2000):14h35m23.07s+05d16m35.88s14h35m23.07s+05d16m35.88s
Origin:Published-value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
218.8461305.276633

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-feed system
Start Channel: -2000.2 km s-1Disperser Type: N/A
End Channel: 3293.5 km s-1Detector Type: Correlator
Channel Step: 5.2 km s-1Observation Mode: Beam
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 210.0 arcsec × 228.0 arcsec
Mean Resolving Power: 27315.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 1024
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2011AJ....142..170H
Notes: N/A
