Aperture/Beam |
Spectrum Previews |
Retrieve Data |
Observational Information |
Spectral Coverage & Resolution |

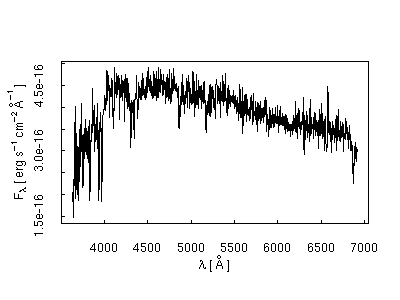

PA = 102 deg |
|
|
Region: | Nucleus |
Telescope: | 2.3m Bok Telescope |
Instrument: | B&C spectrograph |
Abs-Cal: | Yes |
Ref-Frame: | Observed |
Full description | |
Band: | Optical |
From: | 3634.4 Å |
To: | 6915.2 Å |
Step: | 2.8 Å |
Resolution: | 8.0 Å | |

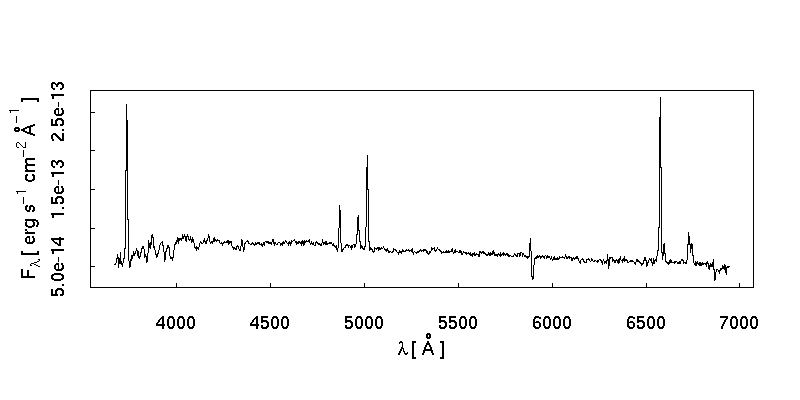

PA = 180 deg |
|
|
Region: | Integrated/Drift-Scan |
Telescope: | 2.3m Bok Telescope |
Instrument: | B&C spectrograph |
Abs-Cal: | Yes |
Ref-Frame: | Observed |
Full description | |
Band: | Optical |
From: | 3670.7 Å |
To: | 6943.2 Å |
Step: | 2.8 Å |
Resolution: | 8.0 Å | |

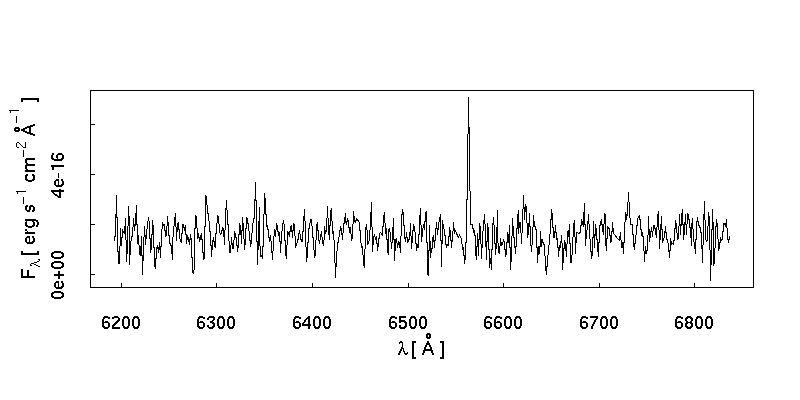

PA = 95 deg |
|
|
Region: | Nucleus |
Telescope: | Palomar 200in |
Instrument: | Double Spectrograph |
Abs-Cal: | Yes |
Ref-Frame: | Rest |
Full description | |
Band: | Optical |
From: | 6193.0 Å |
To: | 6836.0 Å |
Step: | 1.0 Å |
Resolution: | 2.5 Å | |
PA = N/A |
|
|
Region: | Integrated |
Telescope: | Green Bank 42m |
Instrument: | N/A |
Abs-Cal: | Yes |
Ref-Frame: | Observed |
Full description | |
Line: | H I |
From: | -453.8 km s-1 |
To: | 1661.2 km s-1 |
Step: | 4.1 km s-1 |
Resolution: | 11.0 km s-1 | |
PA = N/A |
|
|
Region: | Integrated |
Telescope: | NRAO 300ft(91m) |
Instrument: | Line-Feed system |
Abs-Cal: | Yes |
Ref-Frame: | Observed |
Full description | |
Line: | H I |
From: | -326.2 km s-1 |
To: | 1506.6 km s-1 |
Step: | 2.2 km s-1 |
Resolution: | 21.0 km s-1 | |
See also Photometry & SED.
