DSS Image & Aperture/Beam
PA = N/A

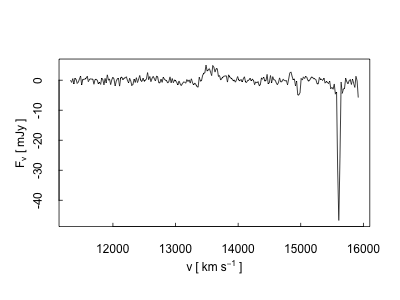

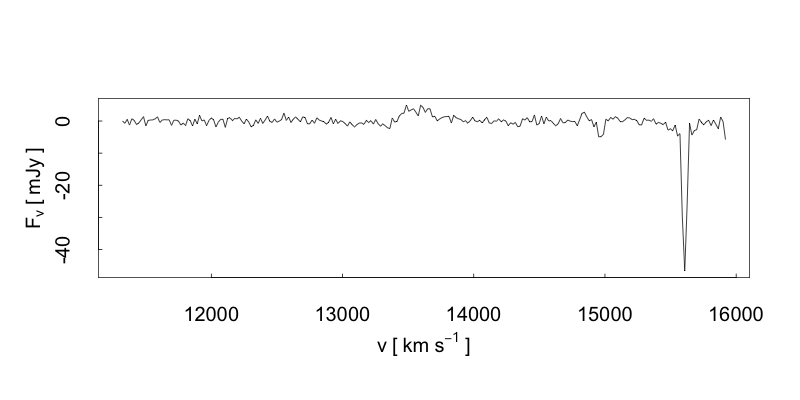

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | PGC 005509 | PGC 005509 |
| Position (J2000): | 01h28m39.90s | +14d45m54.00s | 01h28m39.90s | +14d45m54.00s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 22.166250 | 14.765000 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Spectrograph |
| Start Channel: | 11323.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 15918.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 18.0 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 180.0 arcsec |
| Mean Resolving Power: | 28494.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 256 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2015MNRAS.447.1531C | | |
| Notes: | N/A | |
