DSS Image & Aperture/Beam
PA = N/A

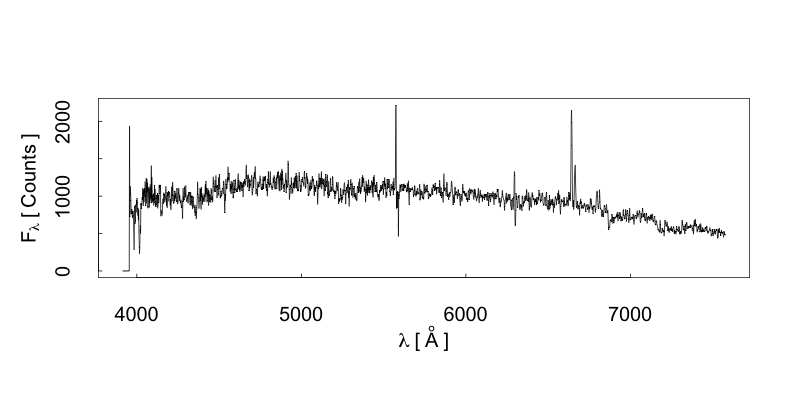

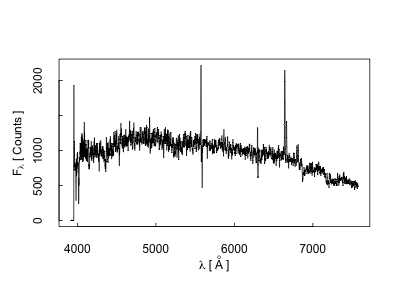

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | g2320115-015124 | 6dF J2320115-015124 |
| Position (J2000): | 23h20m11.48s | -01d51m23.70s | 23h20m11.48s | -01d51m23.70s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 350.047833 | -1.856583 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | UKST |
| Band: | Optical | Instrument Name: | 6dF |
| Start Channel: | 3913.0 Å | Disperser Type: | Prism |
| End Channel: | 7578.1 Å | Detector Type: | CCD |
| Channel Step: | 1.6 Å | Observation Mode: | Fiber-Feed |
| Spectral Resolution: | 5.8 Å | Aperture/Beam Size: | 6.7 arcsec |
| Mean Resolving Power: | 999.0 | Extracted Region Size: | N/A |
| Seeing: | 5.70 arcsec | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 2241 |
| Flux Units: | Counts | Reference Frame: | Observed |
| Flux Calibration: | No | Sensitivity Level: | N/A |
| Absolute Calibration: | No | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | 4 |
| Reference: | 2009MNRAS.399..683J | | |
| Notes: | NOTE: multiple spectra: highest quality presented; all spectra are included in FITS file. | |
DSS Image & Aperture/Beam
PA = N/A

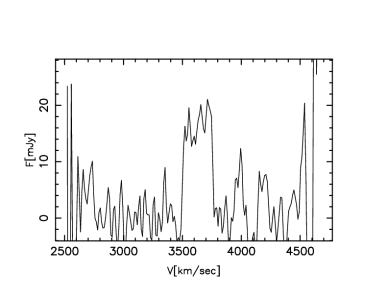

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 12521 | UGC 12521 |
| Position (J2000): | 23h20m11.50s | -01d51m24.00s | 23h20m11.48s | -01d51m23.70s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 350.047920 | -1.856667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | N/A |
| Start Channel: | 2523.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 4673.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 11.2 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 600.0 arcsec |
| Mean Resolving Power: | 27583.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 192 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

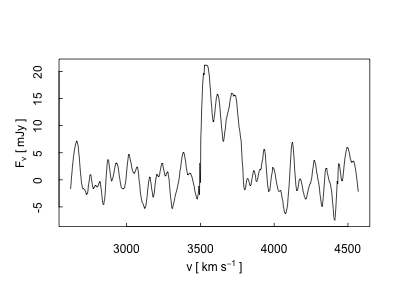

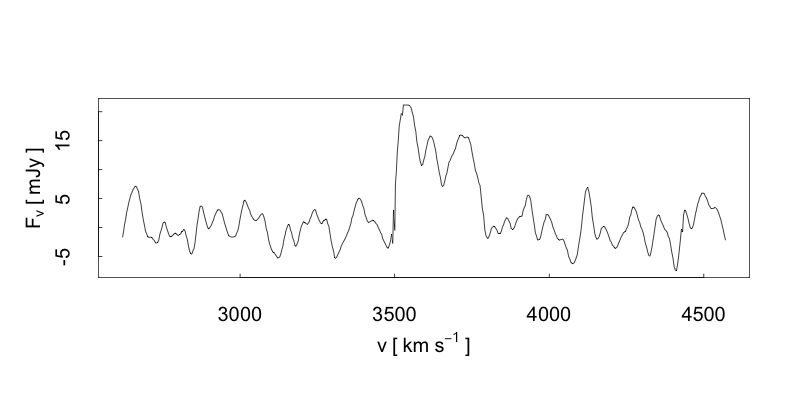

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 12521 | UGC 12521 |
| Position (J2000): | 23h20m11.48s | -01d51m23.70s | 23h20m11.48s | -01d51m23.70s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 350.047833 | -1.856583 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Dual-channel receiver |
| Start Channel: | 2619.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 4570.1 km s-1 | Detector Type: | Correlator |
| Channel Step: | 8.3 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 10.3 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 29457.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 300 sec | Number of Pixels: | 550 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1983AJ.....88.1695L | | |
| Notes: | N/A | |
