DSS Image & Aperture/Beam
PA = N/A

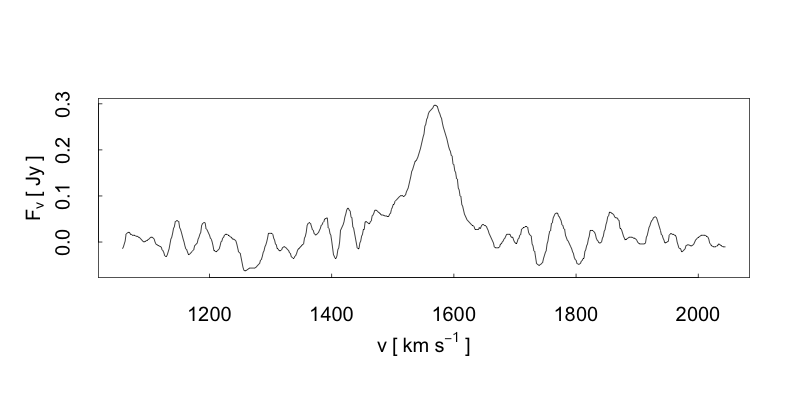

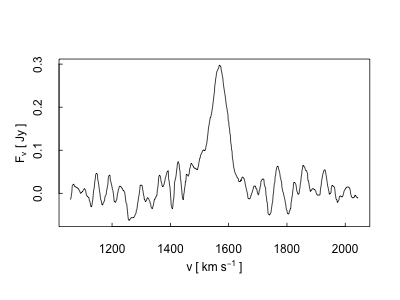

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 6215 | NGC 6215 |
| Position (J2000): | 16h51m06.81s | -58d59m36.50s | 16h51m06.81s | -58d59m36.50s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 252.778375 | -58.993472 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes 64m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 703.6 km s-1 | Disperser Type: | N/A |
| End Channel: | 1703.6 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 7.0 km s-1 | Aperture/Beam Size: | 900.0 arcsec |
| Mean Resolving Power: | 43001.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 600 sec | Number of Pixels: | 661 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1982A&AS...50..451R | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

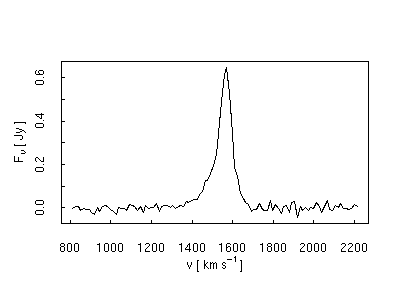

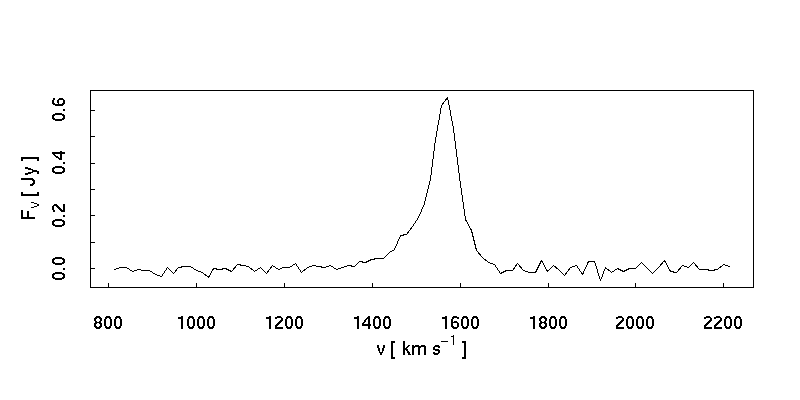

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | HIPASS J1651-59 | HIPASS J1651-59 |
| Position (J2000): | 16h51m07.00s | -58d59m32.00s | 16h51m06.81s | -58d59m36.50s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | J2000 |
| 16 51 07 | -58 59 32 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes |
| Band (Line): | Radio(H I) | Instrument Name: | 21 cm Multibeam Receiver |
| Start Channel: | 813.4 km s-1 | Disperser Type: | N/A |
| End Channel: | 2212.4 km s-1 | Detector Type: | Correlator |
| Channel Step: | 13.2 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 18.0 km s-1 | Aperture/Beam Size: | 930.0 arcsec |
| Mean Resolving Power: | 16741.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 106 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | 40 mJy beam-1 (3 &sigma) |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2004AJ....128...16K | | |
| Notes: | Confused source. | |
DSS Image & Aperture/Beam
PA = N/A

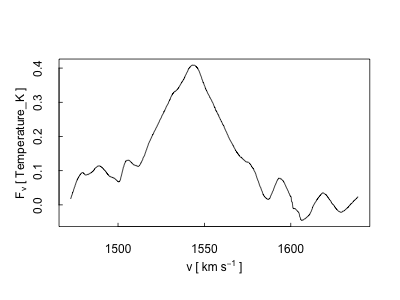

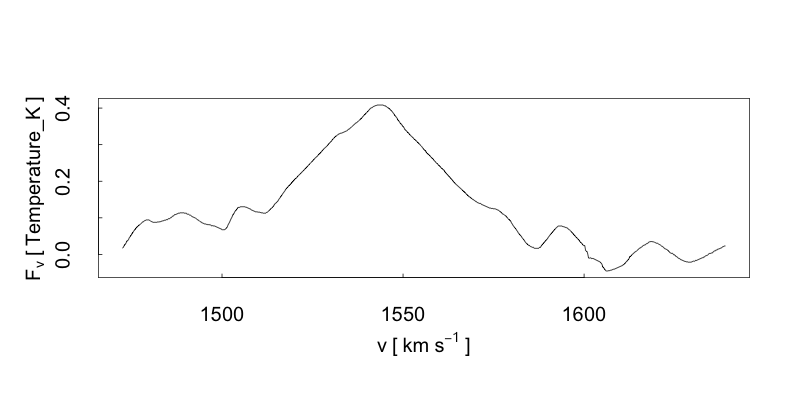

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 6215 | NGC 6215 |
| Position (J2000): | 16h51m06.81s | -58d59m36.50s | 16h51m06.81s | -58d59m36.50s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 252.778375 | -58.993472 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes_64m |
| Band (Line): | Radio(H I) | Instrument Name: | 21cm receiver |
| Start Channel: | 1472.5 km s-1 | Disperser Type: | N/A |
| End Channel: | 1639.0 km s-1 | Detector Type: | Correlator |
| Channel Step: | 0.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 8.2 km s-1 | Aperture/Beam Size: | 888.0 arcsec |
| Mean Resolving Power: | 36752.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 795 |
| Flux Units: | Temperature (K) | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1977AuJPh..30..187W | | |
| Notes: | N/A | |
