DSS Image & Aperture/Beam
PA = N/A

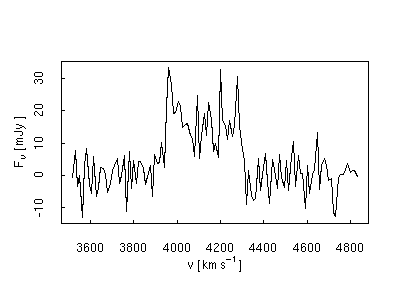

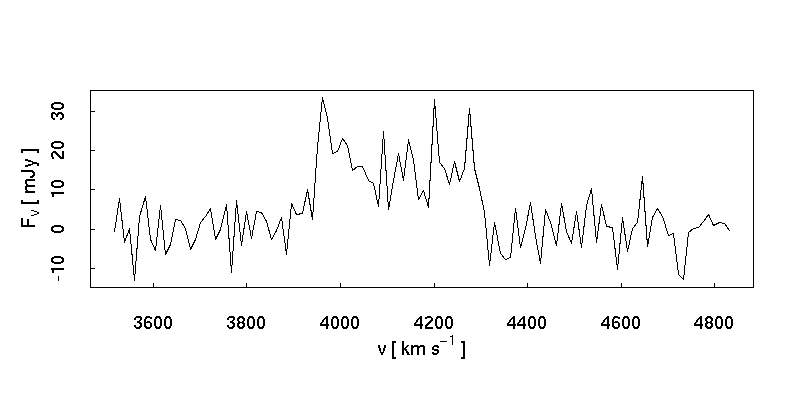

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | PGC 017104 | PGC 017104 |
| Position (J2000): | 05h19m41.90s | +84d03m09.33s | 05h19m41.90s | +84d03m09.33s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 79.924574 | 84.052592 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Nancay |
| Band (Line): | Radio(H I) | Instrument Name: | N/A |
| Start Channel: | 3517.9 km s-1 | Disperser Type: | N/A |
| End Channel: | 4830.6 km s-1 | Detector Type: | Correlator |
| Channel Step: | 10.8 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 1332.0 arcsec |
| Mean Resolving Power: | 27635.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 122 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 1998A&AS..130..333T | | |
| Notes: | V_corr = V_pub / (1 - V_pub / c); Actual HPBW is 3.6 x 22 arcminutes. | |
