DSS Image & Aperture/Beam
PA = 90 deg

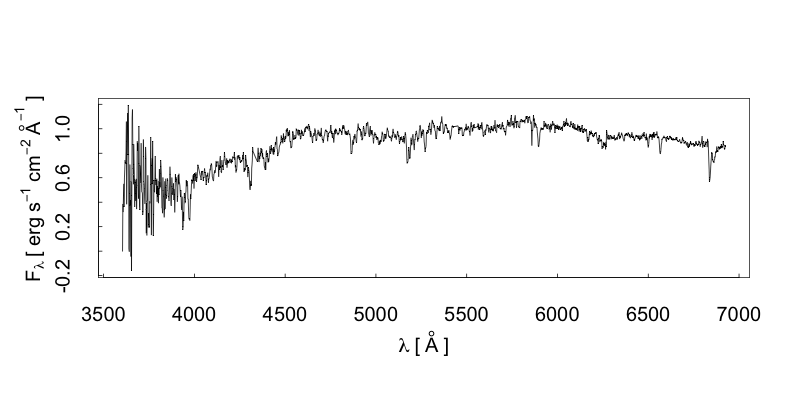

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | VCC 1242 | VCC 1242 |
| Position (J2000): | 12h29m53.55s | +14d04m06.92s | 12h29m53.55s | +14d04m06.92s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 187.473113 | 14.068589 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated/Drift-Scan | Telescope Name: | OHP_1.93m |
| Band: | Optical | Instrument Name: | CARELEC |
| Start Channel: | 3604.3 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 6925.3 Å | Detector Type: | 2048x1024 EEV |
| Channel Step: | 1.8 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 7.0 Å | Aperture/Beam Size: | 2.5 arcsec × 300.0 arcsec |
| Mean Resolving Power: | 752.0 | Extracted Region Size: | N/A |
| Seeing: | 2.50 arcsec | Position Angle of Slit: | 90 deg |
| Airmass: | 1.26 | Dimension of Spectrum: | 1 D |
| Integration Time: | 1500 sec | Number of Pixels: | 1882 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2004A&A...417..499G | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 4474 | NGC 4474 |
| Position (J2000): | 12h29m53.55s | +14d04m06.92s | 12h29m53.55s | +14d04m06.92s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 187.473113 | 14.068589 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | IRAM 30m |
| Band (Line): | Millimeter(CO (1-0)) | Instrument Name: | SIS |
| Start Channel: | 980.7 km s-1 | Disperser Type: | Blazed-Grating |
| End Channel: | 2260.3 km s-1 | Detector Type: | CCD |
| Channel Step: | 31.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 5.0 km s-1 | Aperture/Beam Size: | 23.0 arcsec |
| Mean Resolving Power: | 60285.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 42 |
| Flux Units: | K | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2011MNRAS.414..940Y | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 4474 | NGC 4474 |
| Position (J2000): | 12h29m53.55s | +14d04m06.92s | 12h29m53.55s | +14d04m06.92s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 187.473113 | 14.068589 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | IRAM 30m |
| Band (Line): | Millimeter(CO (2-1)) | Instrument Name: | SIS |
| Start Channel: | 980.7 km s-1 | Disperser Type: | Blazed-Grating |
| End Channel: | 2260.3 km s-1 | Detector Type: | CCD |
| Channel Step: | 31.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 5.0 km s-1 | Aperture/Beam Size: | 12.0 arcsec |
| Mean Resolving Power: | 60285.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 42 |
| Flux Units: | K | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2011MNRAS.414..940Y | | |
| Notes: | N/A | |
