DSS Image & Aperture/Beam
PA = N/A

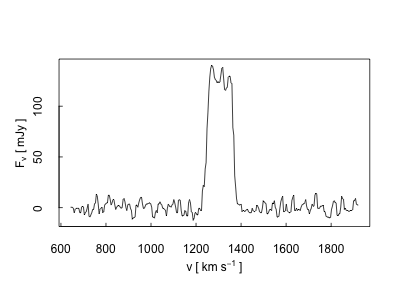

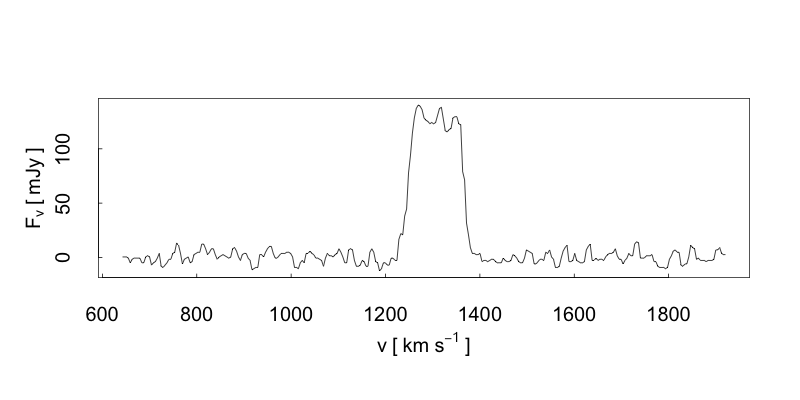

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | ESO 424- G 013 | ESO 424- G 013 |
| Position (J2000): | 05h43m28.06s | -30d29m42.10s | 05h43m28.06s | -30d29m42.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 85.866917 | -30.495028 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Nancay |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 642.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 1920.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 4.1 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 13.0 km s-1 | Aperture/Beam Size: | 216.0 arcsec × 1320.0 arcsec |
| Mean Resolving Power: | 23162.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 1800 sec | Number of Pixels: | 313 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1990A&AS...86..473F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

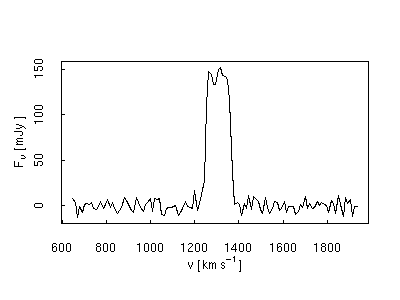

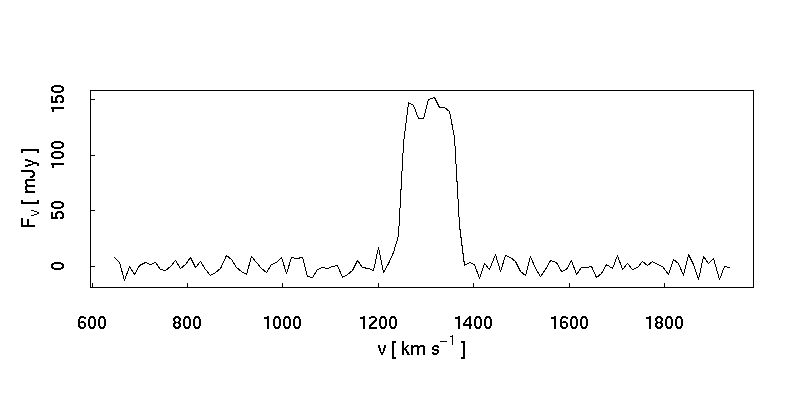

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | PGC 017662 | PGC 017662 |
| Position (J2000): | 05h43m28.06s | -30d29m42.10s | 05h43m28.06s | -30d29m42.10s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 85.866917 | -30.495028 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Nancay |
| Band (Line): | Radio(H I) | Instrument Name: | N/A |
| Start Channel: | 647.5 km s-1 | Disperser Type: | N/A |
| End Channel: | 1935.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 10.6 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 1332.0 arcsec |
| Mean Resolving Power: | 27373.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 122 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 1998A&AS..130..333T | | |
| Notes: | V_corr = V_pub / (1 - V_pub / c); Actual HPBW is 3.6 x 22 arcminutes. | |
DSS Image & Aperture/Beam
PA = N/A

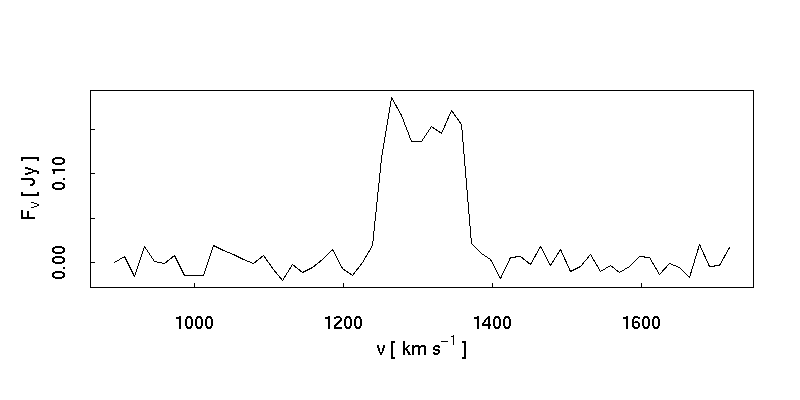

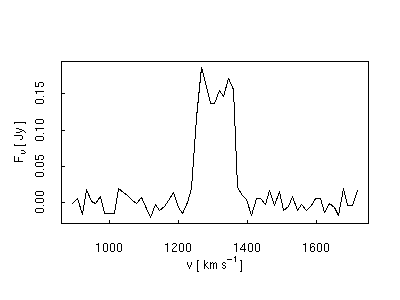

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | HIPASS J0543-30 | HIPASS J0543-30 |
| Position (J2000): | 05h43m26.00s | -30d30m54.00s | 05h43m28.06s | -30d29m42.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | J2000 |
| 05 43 26 | -30 30 54 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes |
| Band (Line): | Radio(H I) | Instrument Name: | 21 cm Multibeam Receiver |
| Start Channel: | 893.0 km s-1 | Disperser Type: | N/A |
| End Channel: | 1718.0 km s-1 | Detector Type: | Correlator |
| Channel Step: | 13.1 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 18.0 km s-1 | Aperture/Beam Size: | 930.0 arcsec |
| Mean Resolving Power: | 16730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 63 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | 40 mJy beam-1 (3 &sigma) |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2004AJ....128...16K | | |
| Notes: | N/A | |
