Spectral data in NED archive for object NGC 3026


DSS Image & Aperture/Beam


PA = 90 deg

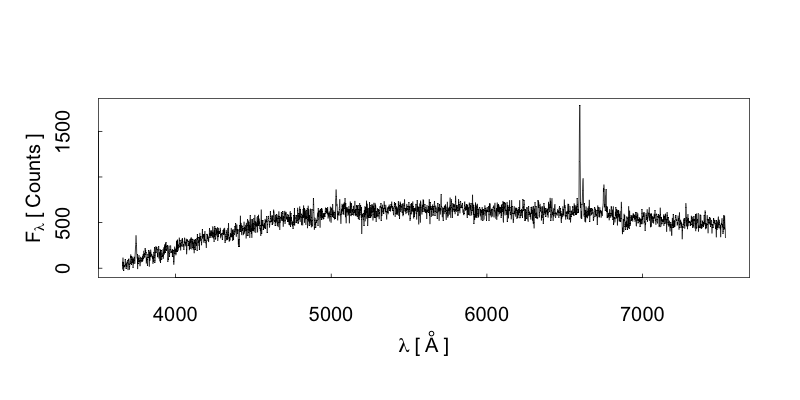

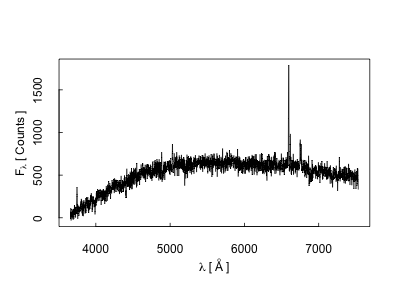

Spectrum Preview


Retrieve Data

FITS12.2kb
Author-ASCII92.2kb
NED-ASCII179.4kb
VOTable N/A

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:CGCG 0948.0+2847CGCG 0948.0+2847
Position (J2000):09h50m55.37s+28d33m04.00s09h50m55.37s+28d33m04.00s
Origin:FITS-Header
System:Equatorial
Type:Sexagesimal
Equinox:J2000
9:50:55.3628:33:05.00

OBSERVATIONAL DETAILS

Observed Region: NucleusTelescope Name: Tillinghast 1.5m
Band: OpticalInstrument Name: FAST
Start Channel: 3659.6 ÅDisperser Type: Blazed-Grating
End Channel: 7532.3 ÅDetector Type: CCD
Channel Step: 1.5 ÅObservation Mode: Fiber-Feed
Spectral Resolution: 6.0 ÅAperture/Beam Size: 3.0 arcsec
Mean Resolving Power: 933.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:90 deg
Airmass: 1.00Dimension of Spectrum: 3 D
Integration Time: 300 secNumber of Pixels: 2635
Flux Units: CountsReference Frame: Observed
Flux Calibration: NoSensitivity Level: N/A
Absolute Calibration: NoBaseline Subtraction: N/A
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2000UZC...C......0F
Notes: N/A

DSS Image & Aperture/Beam


PA = 0 deg

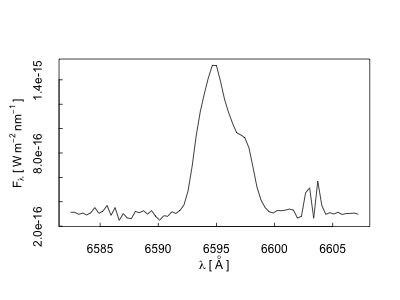

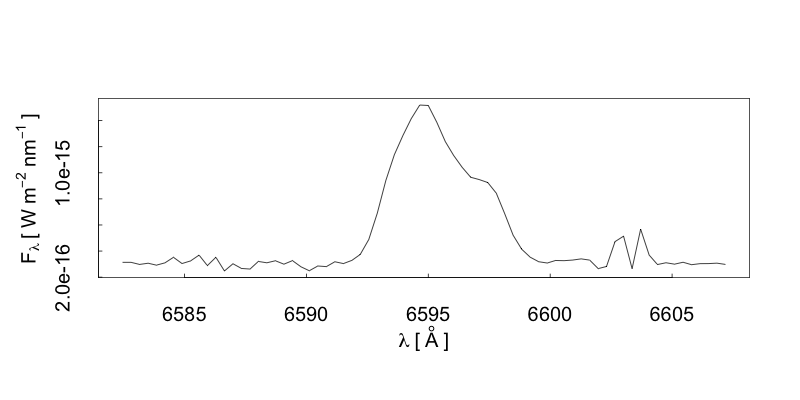

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII5.8kb
NED-ASCII9.6kb
VOTable9.3kb
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 05279UGC 05279
Position (J2000):09h50m56.33s+28d33m01.12s09h50m55.37s+28d33m04.00s
Origin:FITS-Header
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
147.73472328.550310

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: OHP 1.93m
Band: OpticalInstrument Name: IPCS
Start Channel: 6582.5 ÅDisperser Type: Fourier-Transform
End Channel: 6606.8 ÅDetector Type: CCD
Channel Step: 0.3 ÅObservation Mode: Fabry-Perot
Spectral Resolution: 2.5 ÅAperture/Beam Size: 172.1 arcsec × 172.1 arcsec
Mean Resolving Power: 2620.0Extracted Region Size: N/A
Seeing: 3.00 arcsecPosition Angle of Slit:0 deg
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 6000 secNumber of Pixels: 72
Flux Units: W m-2 nm-1Reference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: N/A
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2008MNRAS.390..466E
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

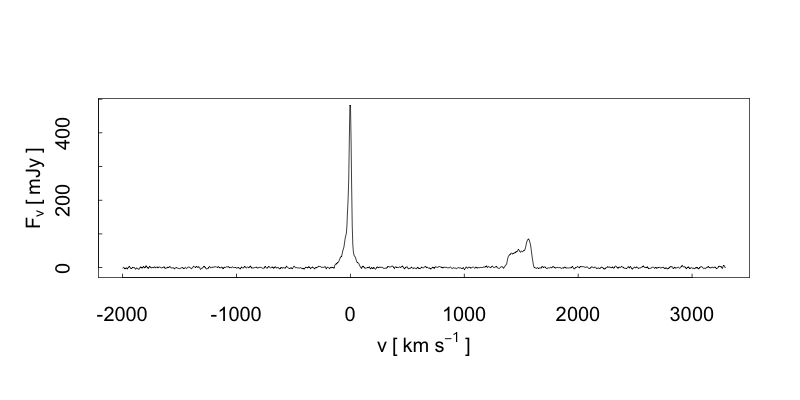

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS30.1kb
Author-ASCII63.9kb
NED-ASCII131.5kb
VOTable123.1kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 05279UGC 05279
Position (J2000):09h50m55.30s+28d33m02.99s09h50m55.37s+28d33m04.00s
Origin:FITS-Header
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
147.7304128.55083

OBSERVATIONAL DETAILS

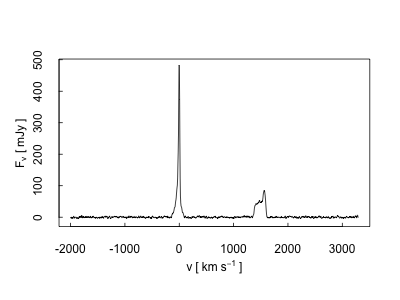

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(HI)Instrument Name: L-wide receiver
Start Channel: -2000.2 km s-1Disperser Type: N/A
End Channel: 3293.5 km s-1Detector Type: Correlator
Channel Step: 5.2 km s-1Observation Mode: Beam
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 210.0 arcsec × 228.0 arcsec
Mean Resolving Power: 27315.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 1024
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2018ApJ...861...49H
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

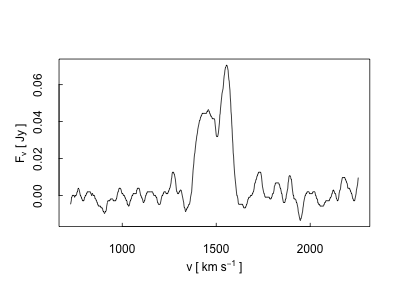

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII29.2kb
NED-ASCII100.7kb
VOTable94.4kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 05279UGC 05279
Position (J2000):09h50m55.37s+28d33m04.00s09h50m55.37s+28d33m04.00s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
147.73070828.551111

OBSERVATIONAL DETAILS

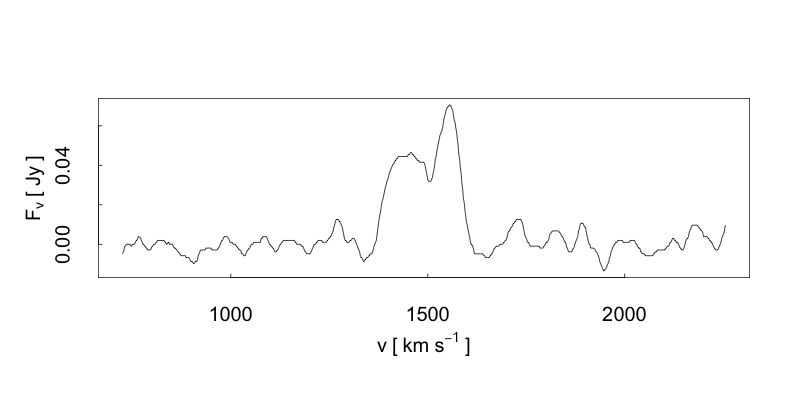

Observed Region: IntegratedTelescope Name: NRAO 300ft(91m)
Band (Line): Radio(H I)Instrument Name: Line-Feed system
Start Channel: 725.0 km s-1Disperser Type: N/A
End Channel: 2255.8 km s-1Detector Type: Correlator
Channel Step: 2.0 km s-1Observation Mode: Beam
Spectral Resolution: 21.0 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 14349.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 784
Flux Units: JyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1979ApJS...40..527P
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII18.2kb
NED-ASCII62.7kb
VOTable58.7kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 05279UGC 05279
Position (J2000):09h50m55.37s+28d33m04.00s09h50m55.37s+28d33m04.00s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
147.73070828.551111

OBSERVATIONAL DETAILS

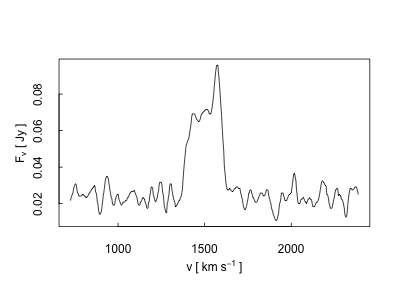

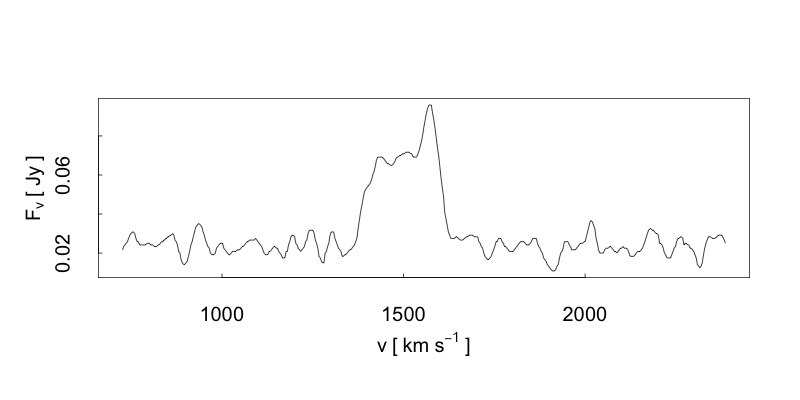

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-Feed system
Start Channel: 726.0 km s-1Disperser Type: N/A
End Channel: 2386.6 km s-1Detector Type: Correlator
Channel Step: 3.4 km s-1Observation Mode: Beam
Spectral Resolution: 2.8 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 107627.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 487
Flux Units: JyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1983AJ.....88..272H
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview


Retrieve Data

FITS N/A
Author-ASCII14.1kb
NED-ASCII25.9kb
VOTable N/A

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 05279UGC 05279
Position (J2000):09h50m55.37s+28d33m04.00s09h50m55.37s+28d33m04.00s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
147.73070828.551111

OBSERVATIONAL DETAILS

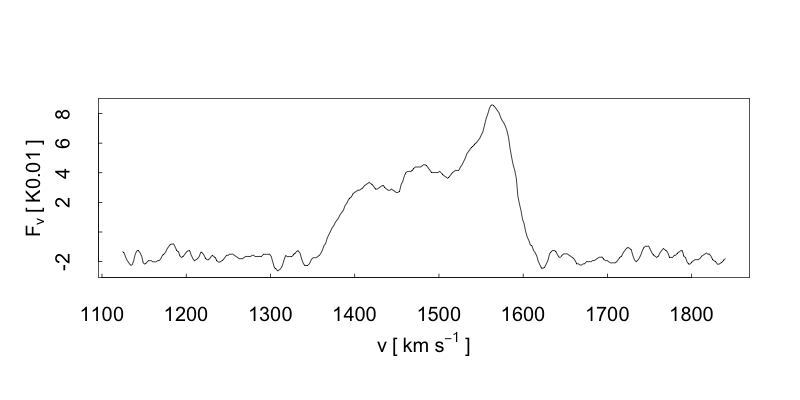

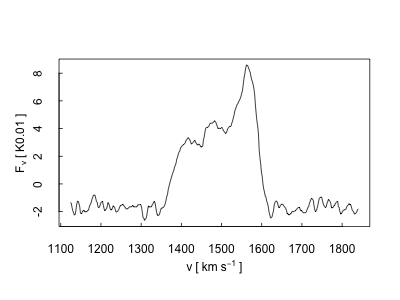

Observed Region: IntegratedTelescope Name: Green Bank 91m
Band (Line): Radio(H I)Instrument Name: Autocorrelator
Start Channel: 1124.4 km s-1Disperser Type: N/A
End Channel: 1840.1 km s-1Detector Type: Correlator
Channel Step: 1.9 km s-1Observation Mode: Beam
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 642.0 arcsec
Mean Resolving Power: 27391.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 378
Flux Units: 0.01KReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1988ApJS...67....1T
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS81.2kb
Author-ASCII293.8kb
NED-ASCII494.7kb
VOTable764.7kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:SDSS J095055.37+283304.0SDSS J095055.37+283304.0
Position (J2000):09h50m55.37s+28d33m04.01s09h50m55.37s+28d33m04.01s
Origin:FITS-Header
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000.0
147.73071028.551113

OBSERVATIONAL DETAILS

Observed Region: NucleusTelescope Name: SDSS 2.5m
Band: OpticalInstrument Name: SPEC2 v4_5
Start Channel: 3791.4 ÅDisperser Type: Prism
End Channel: 9223.6 ÅDetector Type: CCD
Channel Step: 1.4 ÅObservation Mode: Fiber-Feed
Spectral Resolution: 3.2 ÅAperture/Beam Size: 3.0 arcsec
Mean Resolving Power: 2000.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: 1.22Dimension of Spectrum: 1 D
Integration Time: 31071 secNumber of Pixels: 3862
Flux Units: erg s-1 cm-2 Å-1Reference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): 0
Reference: 2007SDSS6.C...0000:
Notes: N/A
