DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | SDSS J031631.83-002805.2 | SDSS J031631.83-002805.2 |
| Position (J2000): | 03h16m31.84s | -00d28m05.24s | 03h16m31.84s | -00d28m05.24s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000.0 |
| 49.132655 | -0.468123 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | SDSS 2.5m |
| Band: | Optical | Instrument Name: | SPEC2 v4_5 |
| Start Channel: | 3789.7 Å | Disperser Type: | Prism |
| End Channel: | 9219.3 Å | Detector Type: | CCD |
| Channel Step: | 1.4 Å | Observation Mode: | Fiber-Feed |
| Spectral Resolution: | 3.2 Å | Aperture/Beam Size: | 3.0 arcsec |
| Mean Resolving Power: | 2003.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | 1.32 | Dimension of Spectrum: | 1 D |
| Integration Time: | 6923 sec | Number of Pixels: | 3862 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2007SDSS6.C...0000: | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |

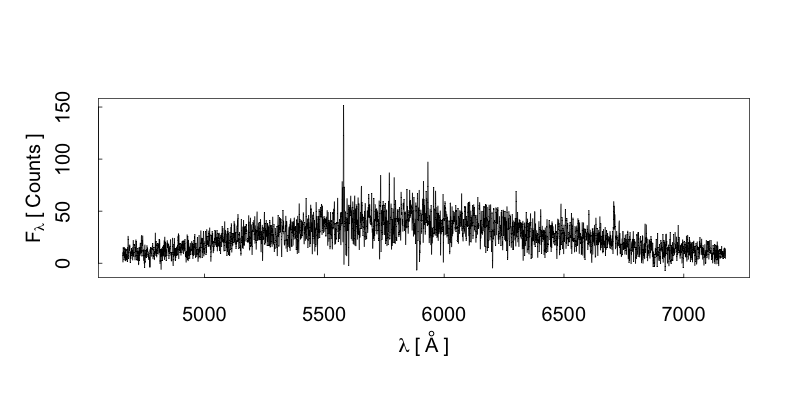

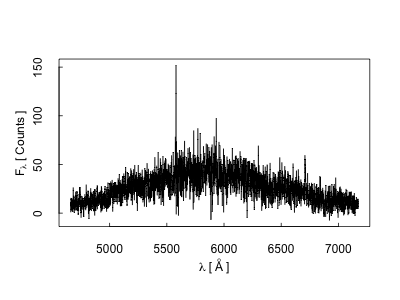

| Name: | CGCG 0314.0-0039 | CGCG 0314.0-0039 |
| Position (J2000): | 03h16m31.84s | -00d28m05.30s | 03h16m31.84s | -00d28m05.30s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 03:14:00.0 | -00:39:00.0 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Mt. Hopkins 1.5m |
| Band: | Optical | Instrument Name: | Z-Machine |
| Start Channel: | 4657.9 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 7173.9 Å | Detector Type: | CCD |
| Channel Step: | 0.6 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.8 Å | Aperture/Beam Size: | 3.2 arcsec × 12.5 arcsec |
| Mean Resolving Power: | 1230.0 | Extracted Region Size: | N/A |
| Seeing: | 1.90 arcsec | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 2 D |
| Integration Time: | 3240 sec | Number of Pixels: | 4096 |
| Flux Units: | Counts | Reference Frame: | Observed |
| Flux Calibration: | No | Sensitivity Level: | N/A |
| Absolute Calibration: | No | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2000UZC...C......0F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |

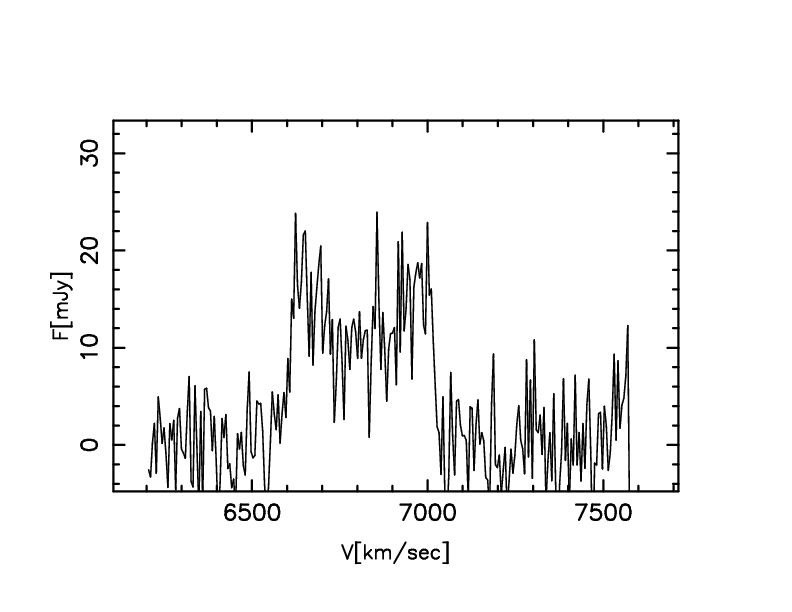

| Name: | UGC 02628 | UGC 02628 |
| Position (J2000): | 03h16m31.80s | -00d28m07.00s | 03h16m31.84s | -00d28m05.20s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 49.132500 | -0.468611 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Nancay |
| Band (Line): | Radio(H I) | Instrument Name: | N/A |
| Start Channel: | 6205.8 km s-1 | Disperser Type: | N/A |
| End Channel: | 7614.0 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.5 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 1200.0 arcsec |
| Mean Resolving Power: | 27884.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 256 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | Actual HPBW is 4 x 20 arcminutes. | |
