DSS Image & Aperture/Beam
PA = N/A

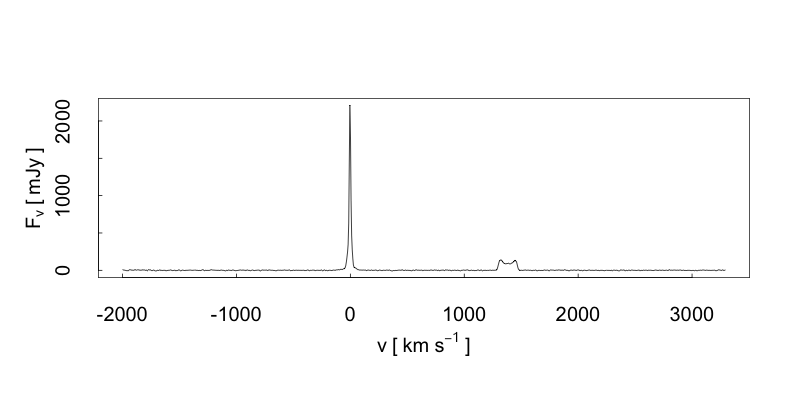

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 05633 | UGC 05633 |
| Position (J2000): | 10h24m39.69s | +14d45m38.22s | 10h24m39.69s | +14d45m38.22s |
| Origin: | Published-value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 156.165380 | 14.760617 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | -2000.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 3293.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27315.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2011AJ....142..170H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 05633 | UGC 05633 |
| Position (J2000): | 10h24m40.00s | +14d45m23.00s | 10h24m40.10s | +14d45m26.00s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 156.166670 | 14.756389 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | -706.9 km s-1 | Disperser Type: | N/A |
| End Channel: | 3545.9 km s-1 | Detector Type: | Correlator |
| Channel Step: | 8.3 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 27385.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 512 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

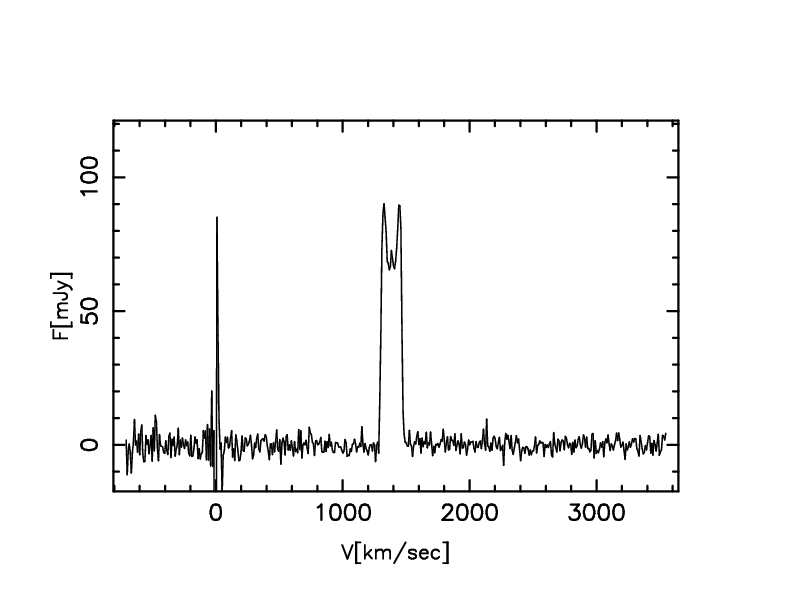

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 05633 | UGC 05633 |
| Position (J2000): | 10h24m40.00s | +14d45m23.00s | 10h24m40.11s | +14d45m24.35s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 156.16666 | 14.75639 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(HI) | Instrument Name: | L-wide receiver |
| Start Channel: | -2000.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 3293.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27315.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2018ApJ...861...49H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

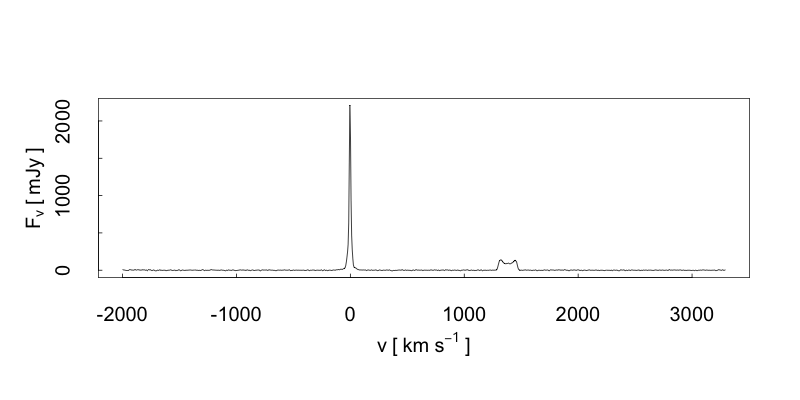

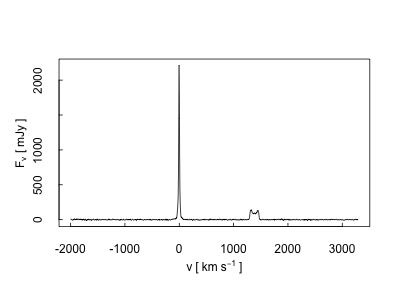

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 05633 | UGC 05633 |
| Position (J2000): | 10h24m40.11s | +14d45m24.35s | 10h24m40.11s | +14d45m24.35s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 156.167128 | 14.756765 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-Feed system |
| Start Channel: | 1028.6 km s-1 | Disperser Type: | N/A |
| End Channel: | 1536.0 km s-1 | Detector Type: | Correlator |
| Channel Step: | 0.8 km s-1 | Observation Mode: | Aperture |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 27372.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 300 sec | Number of Pixels: | 648 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1985ApJS...59..161L | | |
| Notes: | Profiles of new observations after Hanning smoothing. A polynominal baseline and occasional interference spikes have been removed. | |
DSS Image & Aperture/Beam
PA = N/A

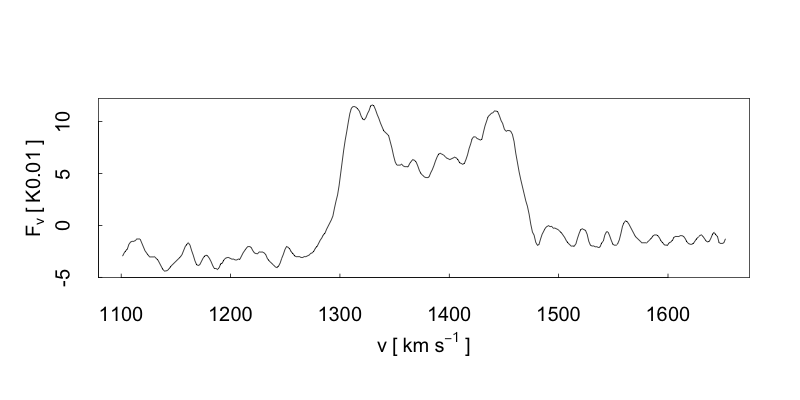

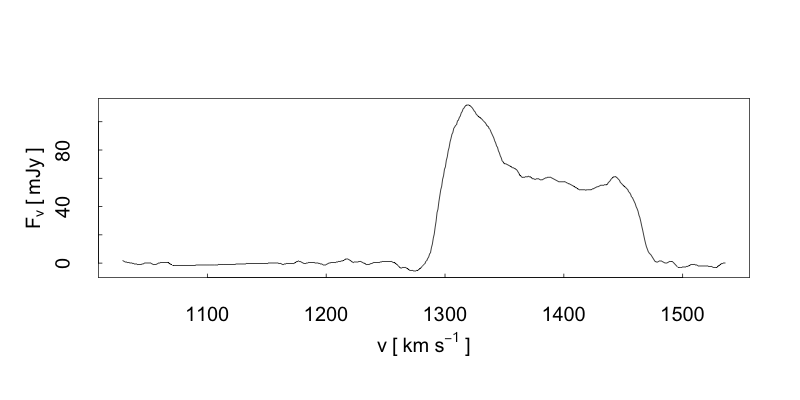

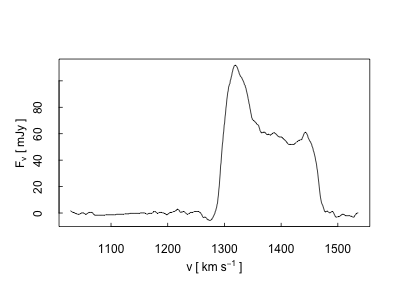

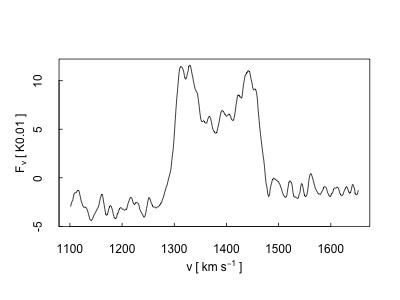

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 05633 | UGC 05633 |
| Position (J2000): | 10h24m40.11s | +14d45m24.35s | 10h24m40.11s | +14d45m24.35s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 156.167128 | 14.756765 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 1101.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 1652.6 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 27381.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 376 |
| Flux Units: | 0.01K | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1988ApJS...67....1T | | |
| Notes: | N/A | |
