DSS Image & Aperture/Beam
PA = N/A

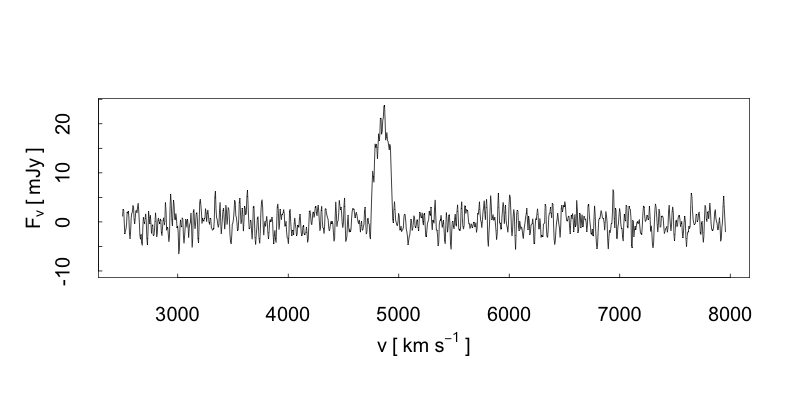

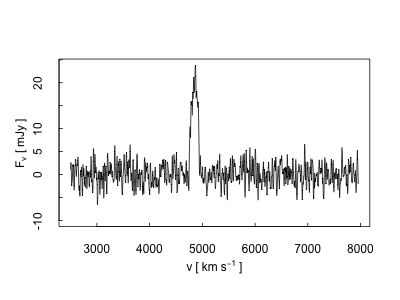

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 09698 | UGC 09698 |
| Position (J2000): | 15h05m27.20s | +23d41m16.01s | 15h05m27.17s | +23d41m18.03s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 226.36334 | 23.68778 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(HI) | Instrument Name: | L-wide receiver |
| Start Channel: | 2500.3 km s-1 | Disperser Type: | N/A |
| End Channel: | 7956.8 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.3 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27731.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2018ApJ...861...49H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | SDSS J150527.17+234118.0 | SDSS J150527.17+234118.0 |
| Position (J2000): | 15h05m27.17s | +23d41m18.03s | 15h05m27.17s | +23d41m18.03s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000.0 |
| 226.363220 | 23.688342 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | SDSS 2.5m |
| Band: | Optical | Instrument Name: | SPEC2 v4_5 |
| Start Channel: | 3807.2 Å | Disperser Type: | Prism |
| End Channel: | 9223.6 Å | Detector Type: | CCD |
| Channel Step: | 1.4 Å | Observation Mode: | Fiber-Feed |
| Spectral Resolution: | 3.2 Å | Aperture/Beam Size: | 3.0 arcsec |
| Mean Resolving Power: | 2000.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | 1.28 | Dimension of Spectrum: | 1 D |
| Integration Time: | 39276 sec | Number of Pixels: | 3844 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2007SDSS6.C...0000: | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

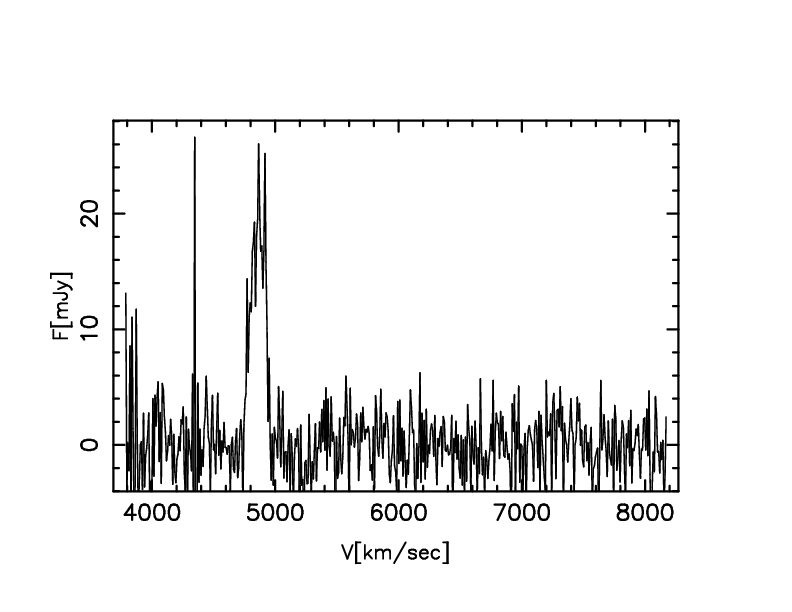

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 09698 | UGC 09698 |
| Position (J2000): | 15h05m27.20s | +23d41m16.00s | 15h05m27.23s | +23d41m18.31s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 226.363330 | 23.687778 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | 3788.1 km s-1 | Disperser Type: | N/A |
| End Channel: | 8170.6 km s-1 | Detector Type: | Correlator |
| Channel Step: | 8.6 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 27799.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 512 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | N/A | |
