ISO LWS Data for NGC 891

(1) Object: "NGC 891 "
(2) TDT: 61401144
(3) Observing Mode: L01
(4) OLP Version: 7.0
(5) Observer_id: "RGENZEL "
(6) Proposal_id: "MPEXGAL1"

Raster Positions; Epoch (J2000)
(1,1)  RA: 02h22m33.2s  Dec: +42d20m58s
(2,1)  RA: 02h22m33.2s  Dec: +42d23m58s

75" LWS Pointing Overlays on DSS and Link to 1x1 degree IRAS Images

This observation has been reduced by the following steps:

  1. Estimate and remove dark current using LWS Interactive Analysis (LIA).
  2. Derive the Absolute Responsivity Correction (ARC) factors using LIA. The ARCs are derived from internal calibration flashes and scale the detector responsivities to the values measured during the LWS calibration.
  3. Remove outlying points by hand using ISAP. These points are typically caused by cosmic ray hits.
  4. Average the data across scans using a 3-sigma "special clip" algorithm found in ISAP and designed for LWS data.
  5. Defringe data with ISAP LWS01 defringe module.
  6. Write out to FITS and ASCII files.

Calibration Notes:

  1. The continuum flux may not be well determined, especially for weak sources. See the LWS Handbook and calibration notes for more information.
  2. For extended sources, NO EXTENDED SOURCE CORRECTION has been applied. See the LWS Handbook and calibration notes for more information.

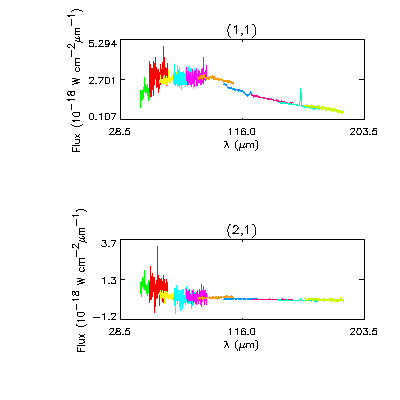

Reduced Spectra and Data:


Reduced data FITS file (Shift-click)      Reduced data ASCII file
