DSS Image & Aperture/Beam
PA = N/A

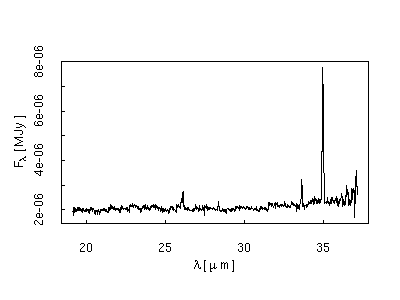

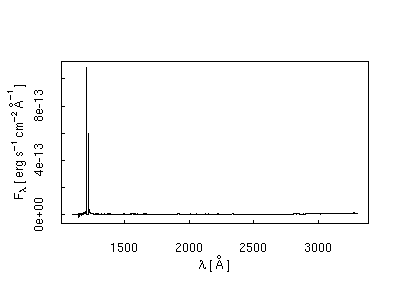

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC1672 | NGC 1672 |
| Position (J2000): | 04h45m42.13s | -59d14m56.91s | 04h45m42.51s | -59d14m50.20s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 04 44 55.0 | -59 20 18 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | IUE |
| Band: | UV | Instrument Name: | SWP + LWP and/or LWR |
| Start Channel: | 1100.2 Å | Disperser Type: | Cross-Disperser-Grating |
| End Channel: | 3299.2 Å | Detector Type: | SEC vidicon cam w/UV-converter |
| Channel Step: | 1.5 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 6.5 Å | Aperture/Beam Size: | 10.0 arcsec × 20.0 arcsec |
| Mean Resolving Power: | 338.4 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 17978 sec | Number of Pixels: | 1454 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 1993ApJS...86....5K | | |
| Notes: | Co-add of 4 short wavelength & 1 long wavelength IUE spectra | |
DSS Image & Aperture/Beam
PA = 90 deg

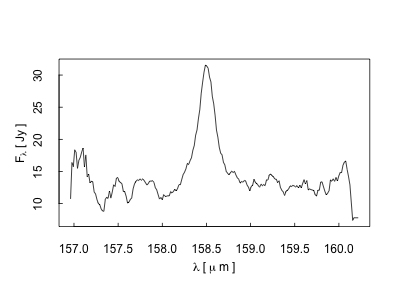

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 1672 | NGC 1672 |
| Position (J2000): | 04h45m42.10s | -59d14m56.00s | 04h45m42.51s | -59d14m50.20s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagecimal | | Equinox: | J2000 |
| 04h45m42.1s | -59d14m56s | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | ISO |
| Band: | Far-IR | Instrument Name: | LWS |
| Start Channel: | 44.2 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 177.6 μm | Detector Type: | CCD |
| Channel Step: | 0.5 μm | Observation Mode: | Aperture |
| Spectral Resolution: | 8.0 μm | Aperture/Beam Size: | 75.0 arcsec |
| Mean Resolving Power: | 139000.0 | Extracted Region Size: | N/A |
| Seeing: | 1.40 arcsec | Position Angle of Slit: | 90 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 1800 sec | Number of Pixels: | 1192 |
| Flux Units: | W cm-2 um-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2008ApJS..178..280B | | |
| Notes: | LWS L02 LINE observing mode | |
DSS Image & Aperture/Beam
PA = N/A

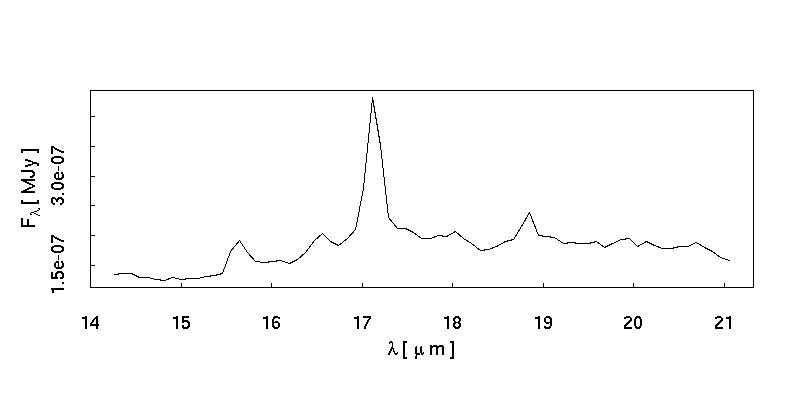

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | HIPASS J0445-59 | HIPASS J0445-59 |
| Position (J2000): | 04h45m43.00s | -59d14m49.00s | 04h45m42.51s | -59d14m50.20s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | J2000 |
| 04 45 43 | -59 14 49 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes |
| Band (Line): | Radio(H I) | Instrument Name: | 21 cm Multibeam Receiver |
| Start Channel: | 813.4 km s-1 | Disperser Type: | N/A |
| End Channel: | 1891.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 13.1 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 18.0 km s-1 | Aperture/Beam Size: | 930.0 arcsec |
| Mean Resolving Power: | 16732.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 82 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | 40 mJy beam-1 (3 &sigma) |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2004AJ....128...16K | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

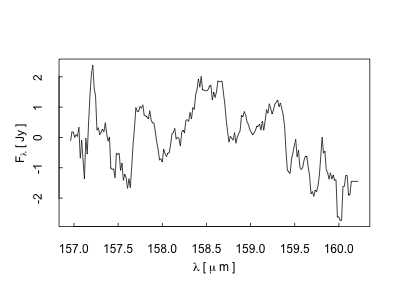

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 1672 | NGC 1672 |
| Position (J2000): | 04h45m42.51s | -59d14m50.20s | 04h45m42.51s | -59d14m50.20s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 71.427125 | -59.247278 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes_64m |
| Band (Line): | Radio(H I) | Instrument Name: | 21cm receiver |
| Start Channel: | 1162.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 1534.2 km s-1 | Detector Type: | Correlator |
| Channel Step: | 0.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 8.2 km s-1 | Aperture/Beam Size: | 888.0 arcsec |
| Mean Resolving Power: | 36726.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 812 |
| Flux Units: | Temperature (K) | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1977AuJPh..30..187W | | |
| Notes: | N/A | |
