DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 06346 | UGC 06346 |
| Position (J2000): | 11h20m15.00s | +12d59m21.01s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.989170 | |
OBSERVATIONAL DETAILS

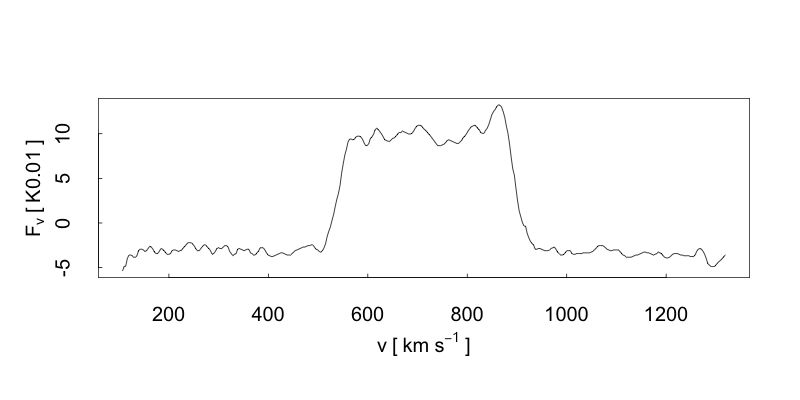

| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |

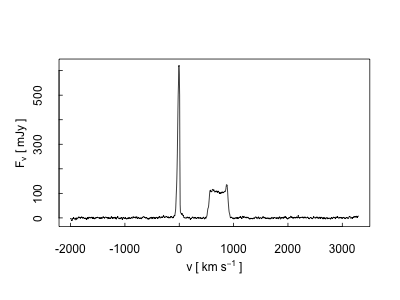

| Band (Line): | Radio(HI) | Instrument Name: | L-wide receiver |
| Start Channel: | -2000.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 3293.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27315.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2018ApJ...861...49H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | N/A | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Multiple |
| Band: | UV-Mid-IR | Instrument Name: | Multiple |
| Start Channel: | 102.3 Å | Disperser Type: | N/A |
| End Channel: | 349799.3 Å | Detector Type: | CCD |
| Channel Step: | 152.0 Å | Observation Mode: | N/A |
| Spectral Resolution: | N/A Å | Aperture/Beam Size: | N/A |
| Mean Resolving Power: | N/A | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 2298 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2014ApJS..212...18B | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated/Drift-Scan | Telescope Name: | Steward Observatory 2.3m |
| Band: | Optical | Instrument Name: | B&C |
| Start Channel: | 3650.0 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 7100.0 Å | Detector Type: | 800x800 TI CCD |
| Channel Step: | 2.0 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.5 Å | Aperture/Beam Size: | 2.5 arcsec × 3.5 arcsec |
| Mean Resolving Power: | 1190.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 2400 sec | Number of Pixels: | 1726 |
| Flux Units: | Counts | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 1992ApJS...79..255K | | |
| Notes: | The blue and red spectra were tied together by normalizing the mean continuum intensities in 4950-5150 A overlap region. | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS

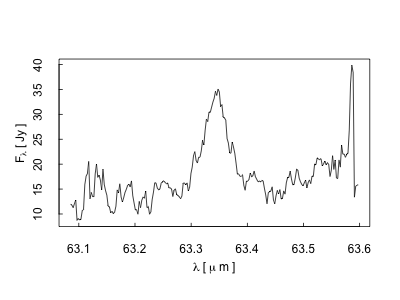

| Observed Region: | Nucleus | Telescope Name: | Herschel |

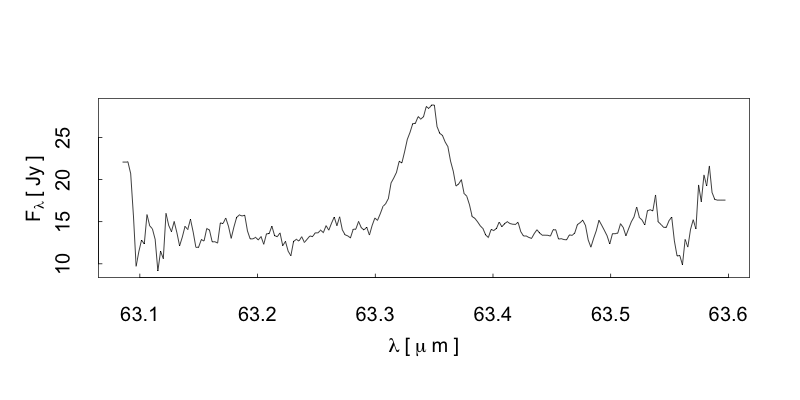

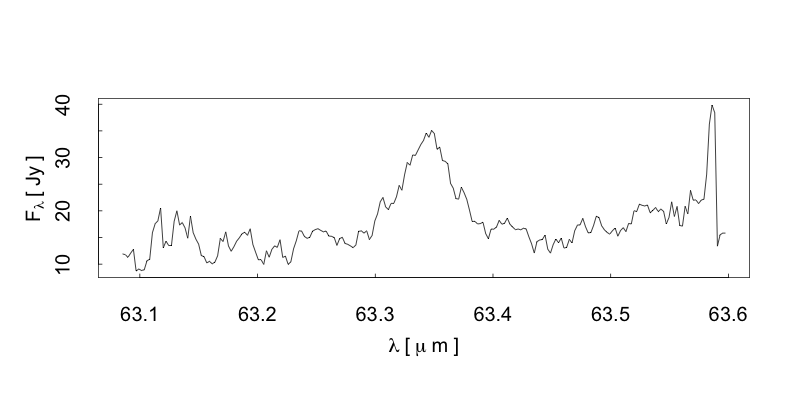

| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 3170.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 3170.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 3170.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS

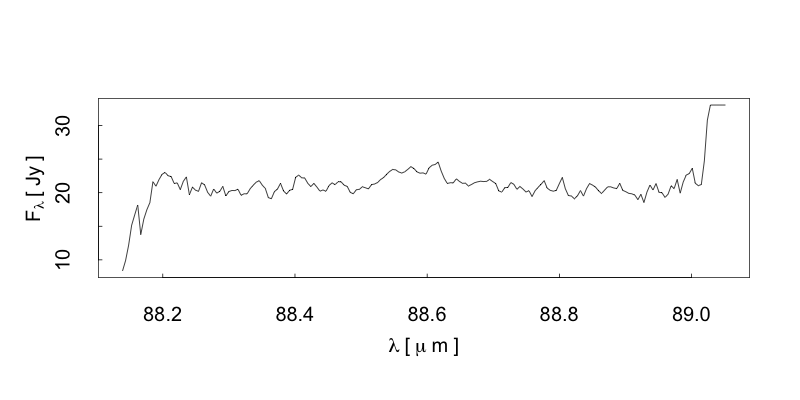

| Observed Region: | Nucleus | Telescope Name: | Herschel |

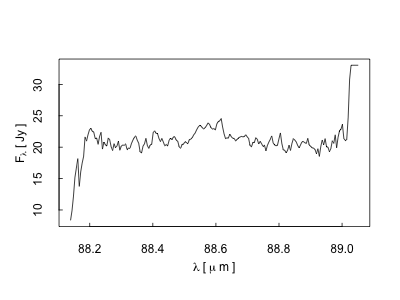

| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 200 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 200 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 200 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

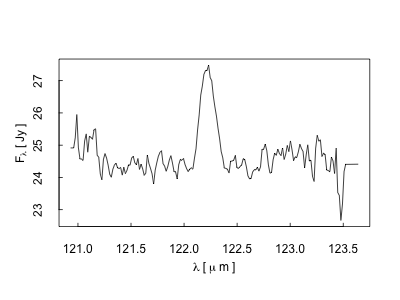

| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 184 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 184 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 184 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

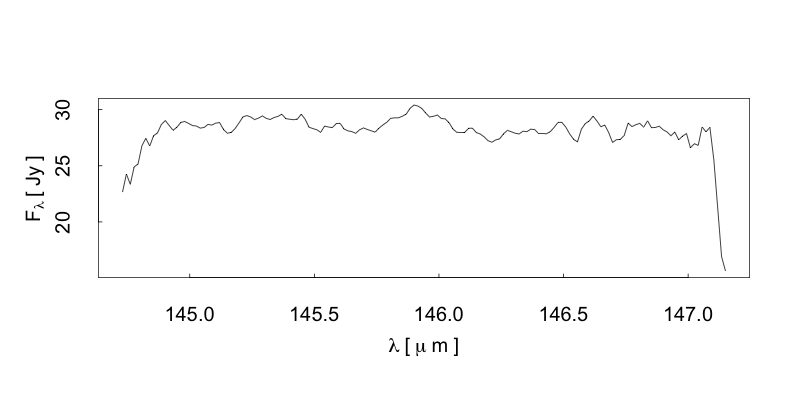

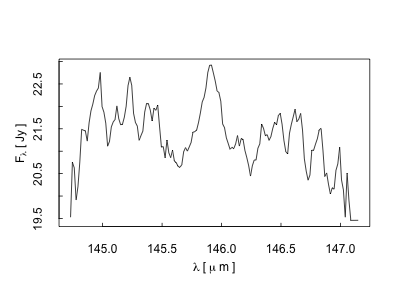

| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.7 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 147.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1240.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 156 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

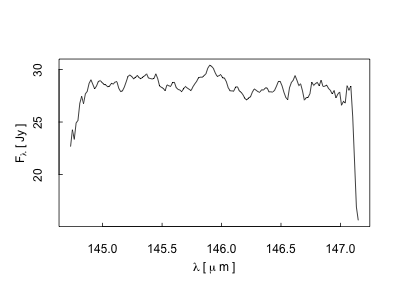

| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.7 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 147.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1240.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 156 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.7 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 147.1 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1240.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 156 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

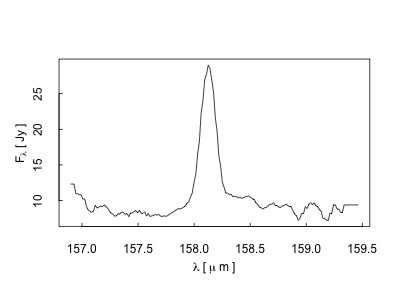

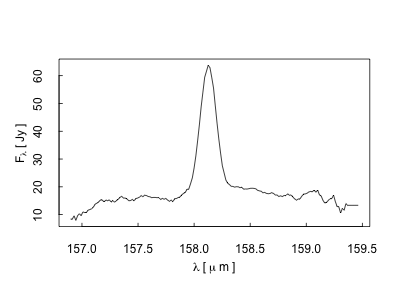

| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1260.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 164 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1260.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 164 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m14.96s | +12d59m29.54s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1260.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 164 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS

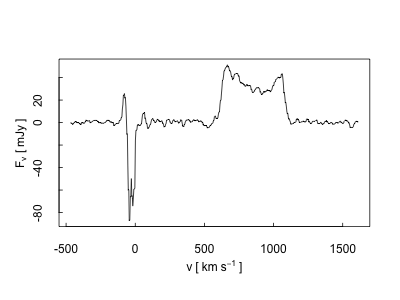

| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Dual-channel receiver |
| Start Channel: | -467.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 1612.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 3.6 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 7.0 km s-1 | Aperture/Beam Size: | 186.0 arcsec |
| Mean Resolving Power: | 42911.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 300 sec | Number of Pixels: | 573 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1987AJ.....93..531J | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Dual-channel receiver |
| Start Channel: | 77.3 km s-1 | Disperser Type: | N/A |
| End Channel: | 1997.2 km s-1 | Detector Type: | Correlator |
| Channel Step: | 2.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 10.3 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 29209.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 768 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1989AJ.....98..524H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 06346 | UGC 06346 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 106.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 1319.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 3.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 27321.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 378 |
| Flux Units: | 0.01K | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1988ApJS...67....1T | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS

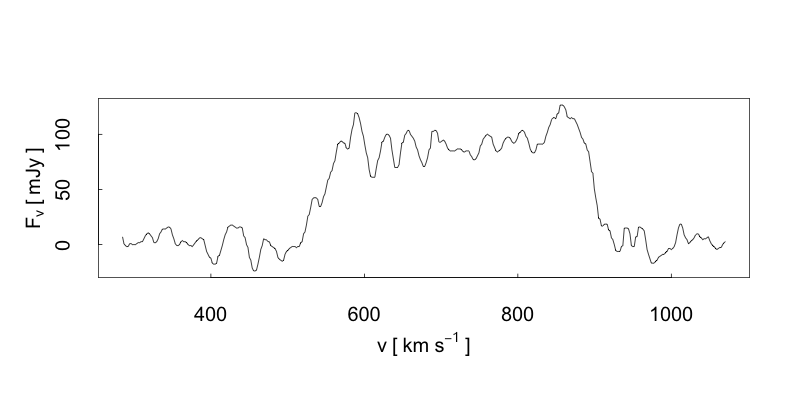

| Observed Region: | Integrated | Telescope Name: | Jodrell Bank, Mk IA |
| Band (Line): | Radio(H I) | Instrument Name: | Spectrometer |
| Start Channel: | 284.8 km s-1 | Disperser Type: | N/A |
| End Channel: | 1070.6 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.9 km s-1 | Observation Mode: | Aperture |
| Spectral Resolution: | 7.3 km s-1 | Aperture/Beam Size: | 720.0 arcsec |
| Mean Resolving Power: | 41162.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 300 sec | Number of Pixels: | 421 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1987MNRAS.224..953S | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 290.5 km s-1 | Disperser Type: | N/A |
| End Channel: | 1224.7 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.6 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 22.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 13663.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 601 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1980A&AS...41..189R | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS

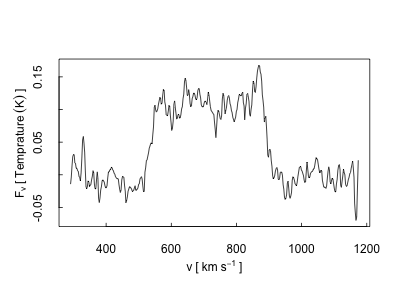

| Observed Region: | Integrated | Telescope Name: | NRAO 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 290.8 km s-1 | Disperser Type: | N/A |
| End Channel: | 1173.8 km s-1 | Detector Type: | Correlator |
| Channel Step: | 2.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 6.6 km s-1 | Aperture/Beam Size: | 600.0 arcsec |
| Mean Resolving Power: | 45536.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 411 |
| Flux Units: | Temprature (K) | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1978ApJ...223..391D | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 294.4 km s-1 | Disperser Type: | N/A |
| End Channel: | 1220.4 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 22.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 13663.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 605 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1980A&AS...41..189R | | |
| Notes: | Profile spatially integrated over NGC 3623/3627/3268 | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.96s | +12d59m29.54s | 11h20m14.96s | +12d59m29.54s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062351 | 12.991538 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | NRAO 300ft(91m) |
| Band (Line): | Radio(H I) | Instrument Name: | Line-Feed system |
| Start Channel: | 519.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 13.0 km s-1 | Detector Type: | Correlator |
| Channel Step: | 0.9 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 22.0 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 13641.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 541 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1978AJ.....83..219R | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 135 deg

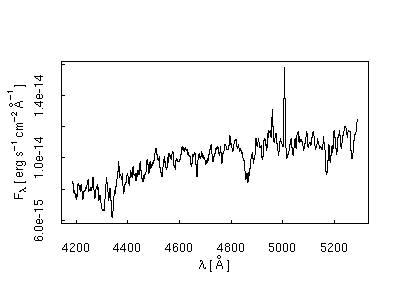

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.53s | +12d59m21.88s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 11 17 38 | +13 15 48 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Palomar 200in |
| Band: | Optical | Instrument Name: | Double Spectrograph |
| Start Channel: | 4187.2 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 5287.6 Å | Detector Type: | CCD |
| Channel Step: | 1.0 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.0 Å | Aperture/Beam Size: | 2.0 arcsec × 128.0 arcsec |
| Mean Resolving Power: | 1184.3 | Extracted Region Size: | 2.0 arcsec × 4.00 arcsec |
| Seeing: | 1.30 arcsec | Position Angle of Slit: | 135 deg |
| Airmass: | 1.15 | Dimension of Spectrum: | 1 D |
| Integration Time: | 900 sec | Number of Pixels: | 1104 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1995ApJS...98..477H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 135 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m14.53s | +12d59m21.88s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 11 17 38 | +13 15 48 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Palomar 200in |
| Band: | Optical | Instrument Name: | Double Spectrograph |
| Start Channel: | 6225.4 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 6868.9 Å | Detector Type: | CCD |
| Channel Step: | 1.0 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5 Å | Aperture/Beam Size: | 2.0 arcsec × 128.0 arcsec |
| Mean Resolving Power: | 2618.8 | Extracted Region Size: | 2.0 arcsec × 4.00 arcsec |
| Seeing: | 1.30 arcsec | Position Angle of Slit: | 135 deg |
| Airmass: | 1.15 | Dimension of Spectrum: | 1 D |
| Integration Time: | 900 sec | Number of Pixels: | 646 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1995ApJS...98..477H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 23 deg

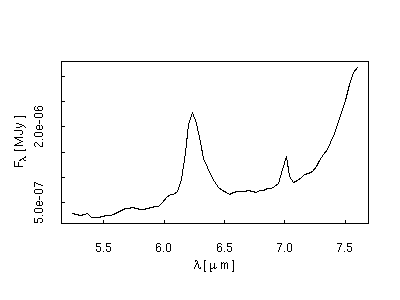

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low2 |
| Start Channel: | 5.2 μm | Disperser Type: | Grating |
| End Channel: | 7.6 μm | Detector Type: | Si:As |
| Channel Step: | 3.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 82.3 | Extracted Region Size: | 27.74 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 23 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 14 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg

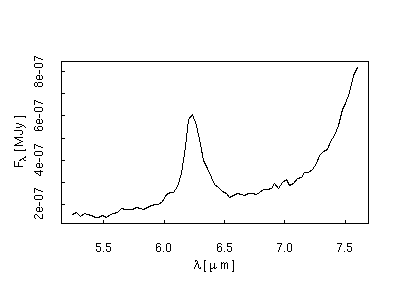

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low2 |
| Start Channel: | 5.2 μm | Disperser Type: | Grating |
| End Channel: | 7.6 μm | Detector Type: | Si:As |
| Channel Step: | 3.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 82.3 | Extracted Region Size: | 12.94 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low2 |
| Start Channel: | 5.2 μm | Disperser Type: | Grating |
| End Channel: | 7.6 μm | Detector Type: | Si:As |
| Channel Step: | 3.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 82.3 | Extracted Region Size: | 12.96 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low2 |
| Start Channel: | 5.2 μm | Disperser Type: | Grating |
| End Channel: | 7.6 μm | Detector Type: | Si:As |
| Channel Step: | 3.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 82.3 | Extracted Region Size: | 12.95 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 23 deg

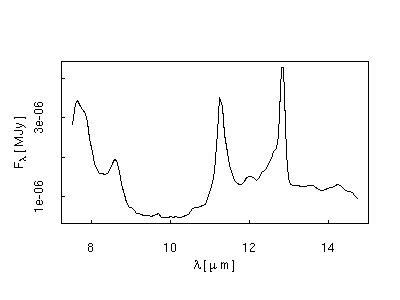

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low1 |
| Start Channel: | 7.5 μm | Disperser Type: | Grating |
| End Channel: | 14.7 μm | Detector Type: | Si:As |
| Channel Step: | 0.1 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 92.0 | Extracted Region Size: | 27.74 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 23 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 14 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg

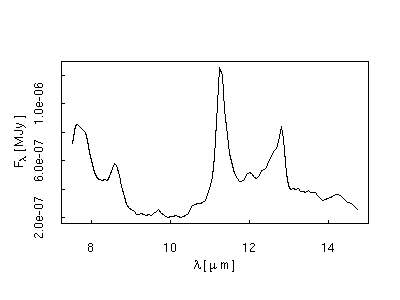

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low1 |
| Start Channel: | 7.5 μm | Disperser Type: | Grating |
| End Channel: | 14.7 μm | Detector Type: | Si:As |
| Channel Step: | 0.1 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 92.0 | Extracted Region Size: | 12.94 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low1 |
| Start Channel: | 7.5 μm | Disperser Type: | Grating |
| End Channel: | 14.7 μm | Detector Type: | Si:As |
| Channel Step: | 0.1 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 92.0 | Extracted Region Size: | 12.95 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -159 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-Low1 |
| Start Channel: | 7.5 μm | Disperser Type: | Grating |
| End Channel: | 14.7 μm | Detector Type: | Si:As |
| Channel Step: | 0.1 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 3.6 arcsec × 57.0 arcsec |
| Mean Resolving Power: | 92.0 | Extracted Region Size: | 12.96 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -159 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -20 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-High |
| Start Channel: | 10.0 μm | Disperser Type: | Grating |
| End Channel: | 19.4 μm | Detector Type: | Si:As |
| Channel Step: | 1.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5e-02 μm | Aperture/Beam Size: | 4.7 arcsec × 11.3 arcsec |
| Mean Resolving Power: | 598.1 | Extracted Region Size: | 13.56 arcsec × 27.12 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -20 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 62 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 156 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-High |
| Start Channel: | 10.0 μm | Disperser Type: | Grating |
| End Channel: | 19.4 μm | Detector Type: | Si:As |
| Channel Step: | 1.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5e-02 μm | Aperture/Beam Size: | 4.7 arcsec × 11.3 arcsec |
| Mean Resolving Power: | 598.1 | Extracted Region Size: | 13.57 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 156 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 62 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 156 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-High |
| Start Channel: | 10.0 μm | Disperser Type: | Grating |
| End Channel: | 19.4 μm | Detector Type: | Si:As |
| Channel Step: | 1.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5e-02 μm | Aperture/Beam Size: | 4.7 arcsec × 11.3 arcsec |
| Mean Resolving Power: | 598.1 | Extracted Region Size: | 13.55 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 156 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 62 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 156 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Short-High |
| Start Channel: | 10.0 μm | Disperser Type: | Grating |
| End Channel: | 19.4 μm | Detector Type: | Si:As |
| Channel Step: | 1.1e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5e-02 μm | Aperture/Beam Size: | 4.7 arcsec × 11.3 arcsec |
| Mean Resolving Power: | 598.1 | Extracted Region Size: | 13.55 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 156 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 62 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -60 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-Low2 |
| Start Channel: | 14.3 μm | Disperser Type: | Grating |
| End Channel: | 21.1 μm | Detector Type: | Si:Sb |
| Channel Step: | 0.1 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.2 μm | Aperture/Beam Size: | 10.5 arcsec × 168.0 arcsec |
| Mean Resolving Power: | 85.1 | Extracted Region Size: | 27.74 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -60 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 31 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -105 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-High |
| Start Channel: | 19.1 μm | Disperser Type: | Grating |
| End Channel: | 37.2 μm | Detector Type: | Si:Sb |
| Channel Step: | 2.0e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.7e-02 μm | Aperture/Beam Size: | 11.1 arcsec × 22.3 arcsec |
| Mean Resolving Power: | 604.2 | Extracted Region Size: | 13.56 arcsec × 27.12 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -105 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 71 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-High |
| Start Channel: | 19.1 μm | Disperser Type: | Grating |
| End Channel: | 37.2 μm | Detector Type: | Si:Sb |
| Channel Step: | 2.0e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.7e-02 μm | Aperture/Beam Size: | 11.1 arcsec × 22.3 arcsec |
| Mean Resolving Power: | 604.2 | Extracted Region Size: | 13.57 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 71 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 71 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-High |
| Start Channel: | 19.1 μm | Disperser Type: | Grating |
| End Channel: | 37.2 μm | Detector Type: | Si:Sb |
| Channel Step: | 2.0e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.7e-02 μm | Aperture/Beam Size: | 11.1 arcsec × 22.3 arcsec |
| Mean Resolving Power: | 604.2 | Extracted Region Size: | 13.55 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 71 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = 71 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m16.27s | +12d57m50.10s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.067792 | 12.963917 | |
OBSERVATIONAL DETAILS
| Observed Region: | Off-Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-High |
| Start Channel: | 19.1 μm | Disperser Type: | Grating |
| End Channel: | 37.2 μm | Detector Type: | Si:Sb |
| Channel Step: | 2.0e-02 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.7e-02 μm | Aperture/Beam Size: | 11.1 arcsec × 22.3 arcsec |
| Mean Resolving Power: | 604.2 | Extracted Region Size: | 13.55 arcsec × 24.85 arcsec |
| Seeing: | N/A | Position Angle of Slit: | 71 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 60 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = -60 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 3627 | NGC 3627 |
| Position (J2000): | 11h20m15.00s | +12d59m30.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Fits-Header | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.991667 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus (Cube Extraction) | Telescope Name: | Spitzer |
| Band: | Mid-IR | Instrument Name: | IRS_Long-Low1 |
| Start Channel: | 20.5 μm | Disperser Type: | Grating |
| End Channel: | 38.3 μm | Detector Type: | Si:Sb |
| Channel Step: | 0.2 μm | Observation Mode: | Long-Slit |
| Spectral Resolution: | 0.3 μm | Aperture/Beam Size: | 10.5 arcsec × 168.0 arcsec |
| Mean Resolving Power: | 87.2 | Extracted Region Size: | 27.74 arcsec × 51.80 arcsec |
| Seeing: | N/A | Position Angle of Slit: | -60 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 31 sec | Number of Pixels: | 128 |
| Flux Units: | MJy/sr | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2007SINGS.5......0: | | |
| Notes: | Spectral extraction created from an IRS spectral mapping dataset. | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 06346 | UGC 06346 |
| Position (J2000): | 11h20m15.00s | +12d59m21.00s | 11h20m15.03s | +12d59m29.58s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 170.062500 | 12.989167 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 42m |
| Band (Line): | Radio(H I) | Instrument Name: | N/A |
| Start Channel: | -354.5 km s-1 | Disperser Type: | N/A |
| End Channel: | 1761.9 km s-1 | Detector Type: | Correlator |
| Channel Step: | 4.1 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 1260.0 arcsec |
| Mean Resolving Power: | 27320.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 512 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 06346 | UGC 06346 |
| Position (J2000): | 11h20m15.06s | +12d59m17.59s | 11h20m15.06s | +12d59m17.59s |
| Origin: | Published-value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 170.062730 | 12.988219 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | -2000.2 km s-1 | Disperser Type: | N/A |
| End Channel: | 3293.5 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27315.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2011AJ....142..170H | | |
| Notes: | N/A | |
