DSS Image & Aperture/Beam


PA = N/A

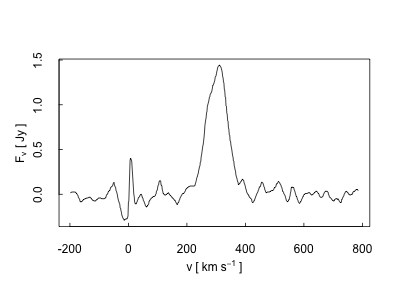

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII107.6kb
NED-ASCII186.0kb
VOTable288.7kb
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:NGC5253NGC 5253
Position (J2000):13h39m55.84s-31d38m41.22s13h39m55.96s-31d38m24.39s
Origin:Published-Value
System:Equatorial
Type:Sexagesimal
Equinox:B1950
13 37 05.0-31 23 30

OBSERVATIONAL DETAILS

Observed Region: NucleusTelescope Name: IUE
Band: UVInstrument Name: SWP + LWP and/or LWR
Start Channel: 1100.2 ÅDisperser Type: Cross-Disperser-Grating
End Channel: 3299.2 ÅDetector Type: SEC vidicon cam w/UV-converter
Channel Step: 1.5 ÅObservation Mode: Long-Slit
Spectral Resolution: 6.5 ÅAperture/Beam Size: 10.0 arcsec × 20.0 arcsec
Mean Resolving Power: 338.4Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 32762 secNumber of Pixels: 1450
Flux Units: erg s-1 cm-2 Å-1Reference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: N/A
Sky Subtraction: N/AQuality Flag(s): N/A
Reference: 1993ApJS...86....5K
Notes: Co-add of 7 short wavelength & 8 long wavelength IUE spectra

DSS Image & Aperture/Beam


PA = 90 deg

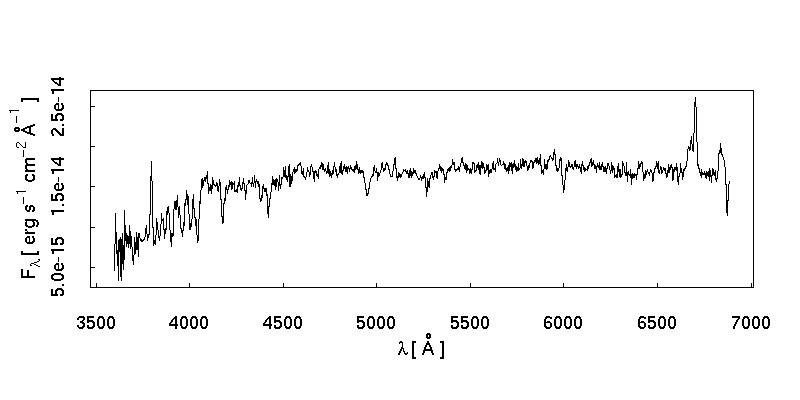

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII65.8kb
NED-ASCII153.0kb
VOTable238.4kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:NGC 5253NGC 5253
Position (J2000):13h39m55.42s-31d37m56.50s13h39m55.96s-31d38m24.39s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
204.980920-31.632360

OBSERVATIONAL DETAILS

Observed Region: Integrated/Drift-ScanTelescope Name: 2.3m Bok Telescope
Band: OpticalInstrument Name: B&C spectrograph
Start Channel: 3608.6 ÅDisperser Type: Blazed-Grating
End Channel: 6883.9 ÅDetector Type: CCD
Channel Step: 2.8 ÅObservation Mode: Long-Slit
Spectral Resolution: 8.0 ÅAperture/Beam Size: 2.5 arcsec × 200.0 arcsec
Mean Resolving Power: 656.0Extracted Region Size: 130.00 arcsec × 80.00 arcsec
Seeing: 1.40 arcsecPosition Angle of Slit:90 deg
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 1800 secNumber of Pixels: 1192
Flux Units: erg s-1 cm-2 Å-1Reference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): 0
Reference: 2006ApJS..164...81M
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

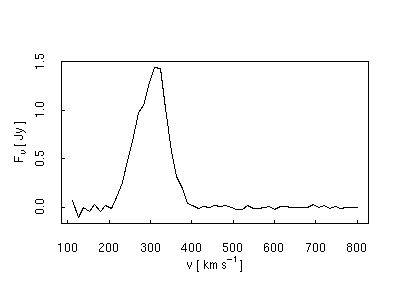

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII2.0kb
NED-ASCII5.8kb
VOTable5.8kb
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:HIPASS J1339-31AHIPASS J1339-31A
Position (J2000):13h39m56.00s-31d39m06.00s13h39m55.96s-31d38m24.39s
Origin:Published-Value
System:Equatorial
Type:Sexagesimal
Equinox:J2000
13 39 56-31 39 06

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Parkes
Band (Line): Radio(H I)Instrument Name: 21 cm Multibeam Receiver
Start Channel: 257.3 km s-1Disperser Type: N/A
End Channel: 800.1 km s-1Detector Type: Correlator
Channel Step: 12.9 km s-1Observation Mode: N/A
Spectral Resolution: 18.0 km s-1Aperture/Beam Size: 930.0 arcsec
Mean Resolving Power: 16687.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 42
Flux Units: JyReference Frame: Observed
Flux Calibration: YesSensitivity Level: 40 mJy beam-1 (3 &sigma)
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: N/AQuality Flag(s): N/A
Reference: 2004AJ....128...16K
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview



Retrieve Data

FITS N/A
Author-ASCII30.2kb
NED-ASCII55.5kb
VOTable N/A

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:NGC 5253NGC 5253
Position (J2000):13h39m55.96s-31d38m24.39s13h39m55.96s-31d38m24.39s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
204.983180-31.640108

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Parkes_64m
Band (Line): Radio(H I)Instrument Name: 21cm receiver
Start Channel: 270.2 km s-1Disperser Type: N/A
End Channel: 560.0 km s-1Detector Type: Correlator
Channel Step: 0.4 km s-1Observation Mode: Beam
Spectral Resolution: 8.2 km s-1Aperture/Beam Size: 888.0 arcsec
Mean Resolving Power: 36613.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 813
Flux Units: Temperature (K)Reference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1977AuJPh..30..187W
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII25.8kb
NED-ASCII89.2kb
VOTable83.6kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:NGC 5253NGC 5253
Position (J2000):13h39m55.96s-31d38m24.39s13h39m55.96s-31d38m24.39s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
204.983180-31.640108

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Parkes 64m
Band (Line): Radio(H I)Instrument Name: Autocorrelator
Start Channel: 1655.1 km s-1Disperser Type: N/A
End Channel: 3116.3 km s-1Detector Type: Correlator
Channel Step: 2.1 km s-1Observation Mode: Beam
Spectral Resolution: 7.0 km s-1Aperture/Beam Size: 900.0 arcsec
Mean Resolving Power: 43170.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 600 secNumber of Pixels: 699
Flux Units: JyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1982A&AS...50..451R
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

Spectrum Preview



Retrieve Data

FITS56.4kb
Author-ASCII52.9kb
NED-ASCII152.8kb
VOTable N/A
External Resource

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:g1339560-3138246dF J1339560-313824
Position (J2000):13h39m55.99s-31d38m24.30s13h39m55.99s-31d38m24.30s
Origin:FITS-Header
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
204.983292-31.640083

OBSERVATIONAL DETAILS

Observed Region: NucleusTelescope Name: UKST
Band: OpticalInstrument Name: 6dF
Start Channel: 3932.3 ÅDisperser Type: Prism
End Channel: 7597.0 ÅDetector Type: CCD
Channel Step: 1.6 ÅObservation Mode: Fiber-Feed
Spectral Resolution: 5.8 ÅAperture/Beam Size: 6.7 arcsec
Mean Resolving Power: 1000.0Extracted Region Size: N/A
Seeing: 5.70 arcsecPosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 2244
Flux Units: CountsReference Frame: Observed
Flux Calibration: NoSensitivity Level: N/A
Absolute Calibration: NoBaseline Subtraction: N/A
Sky Subtraction: YesQuality Flag(s): 6
Reference: 2009MNRAS.399..683J
Notes: NOTE: multiple spectra: highest quality presented; all spectra are included in FITS file.
