DSS Image & Aperture/Beam
PA = N/A

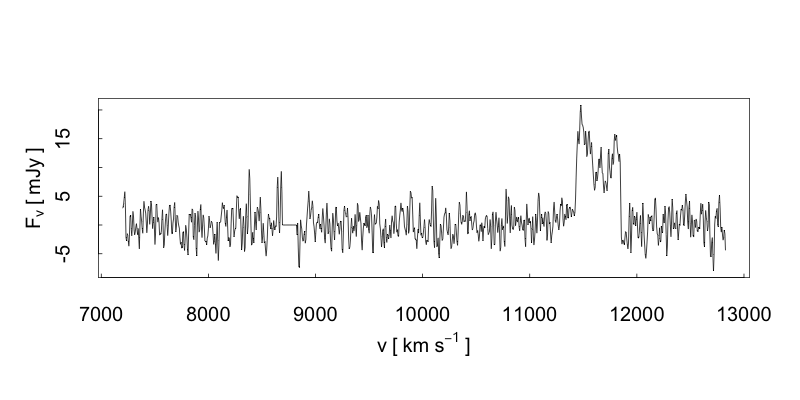

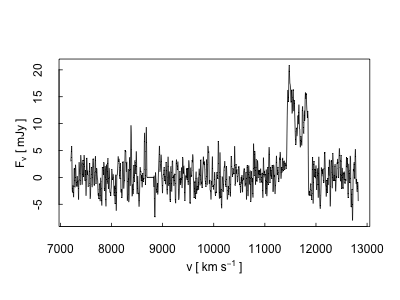

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 12226 | UGC 12226 |
| Position (J2000): | 22h52m46.92s | +15d49m01.85s | 22h52m46.92s | +15d49m01.85s |
| Origin: | Published-value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 343.195520 | 15.817181 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | 2500.3 km s-1 | Disperser Type: | N/A |
| End Channel: | 7956.8 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.3 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 27731.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2011AJ....142..170H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

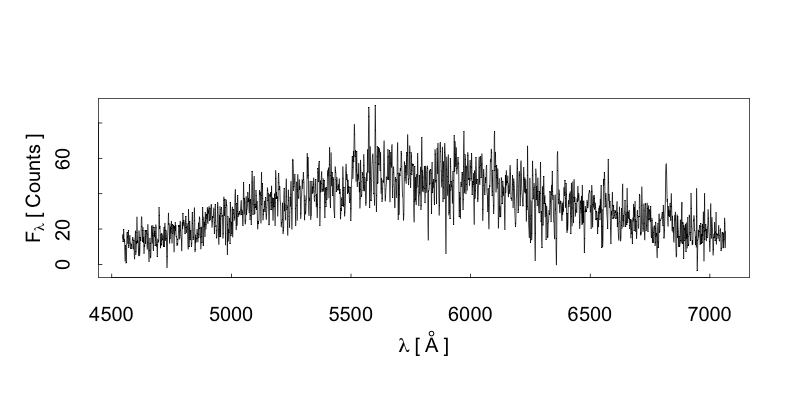

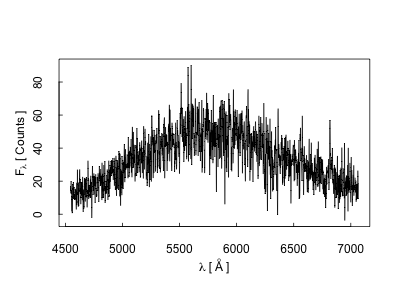

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | CGCG 2250.4+1533 | CGCG 2250.4+1533 |
| Position (J2000): | 22h52m47.83s | +15d48m56.70s | 22h52m47.83s | +15d48m56.70s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 22:50:24.0 | 15:33:00.0 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Mt. Hopkins 1.5m |
| Band: | Optical | Instrument Name: | Z-Machine |
| Start Channel: | 4545.0 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 7065.2 Å | Detector Type: | CCD |
| Channel Step: | 1.2 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.8 Å | Aperture/Beam Size: | 3.2 arcsec × 12.5 arcsec |
| Mean Resolving Power: | 1210.0 | Extracted Region Size: | N/A |
| Seeing: | 1.90 arcsec | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 2 D |
| Integration Time: | 1800 sec | Number of Pixels: | 2048 |
| Flux Units: | Counts | Reference Frame: | Observed |
| Flux Calibration: | No | Sensitivity Level: | N/A |
| Absolute Calibration: | No | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2000UZC...C......0F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

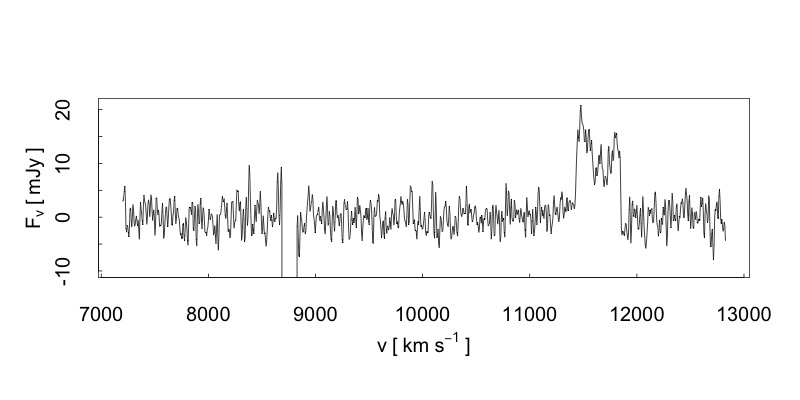

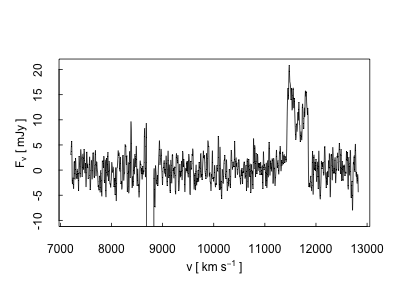

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 12226 | UGC 12226 |
| Position (J2000): | 22h52m47.80s | +15d48m56.02s | 22h52m47.83s | +15d48m56.70s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 343.19916 | 15.81556 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(HI) | Instrument Name: | L-wide receiver |
| Start Channel: | 7198.4 km s-1 | Disperser Type: | N/A |
| End Channel: | 12827.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 5.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 210.0 arcsec × 228.0 arcsec |
| Mean Resolving Power: | 28166.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 1024 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 2018ApJ...861...49H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A

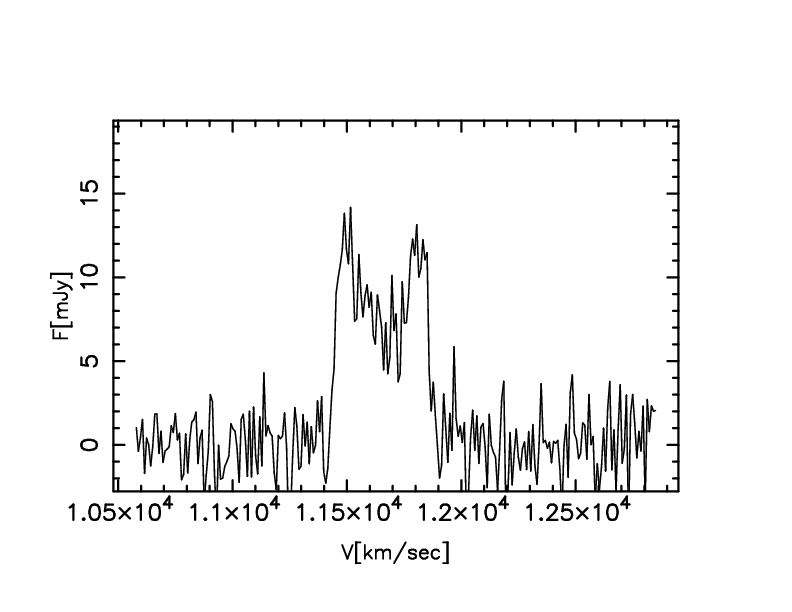

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 12226 | UGC 12226 |
| Position (J2000): | 22h52m47.80s | +15d48m56.00s | 22h52m47.83s | +15d48m56.70s |
| Origin: | Published_Value | | System: | Equatorial | | Type: | Decimal-degrees | | Equinox: | J2000 |
| 343.199170 | 15.815556 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Arecibo 305m |
| Band (Line): | Radio(H I) | Instrument Name: | Line-feed system |
| Start Channel: | 10579.5 km s-1 | Disperser Type: | N/A |
| End Channel: | 12849.2 km s-1 | Detector Type: | Correlator |
| Channel Step: | 9.0 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 198.0 arcsec |
| Mean Resolving Power: | 28321.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 252 |
| Flux Units: | mJy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | No |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2005ApJS..160..149S | | |
| Notes: | N/A | |
