DSS Image & Aperture/Beam


PA = N/A

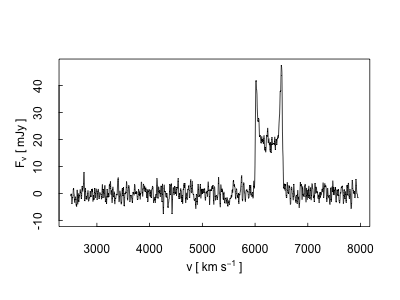

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS29.9kb
Author-ASCII63.9kb
NED-ASCII131.5kb
VOTable123.1kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 06479UGC 06479
Position (J2000):11h28m50.50s+20d47m39.98s11h28m50.38s+20d47m42.05s
Origin:FITS-Header
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
172.210420.79444

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(HI)Instrument Name: L-wide receiver
Start Channel: 2500.3 km s-1Disperser Type: N/A
End Channel: 7956.8 km s-1Detector Type: Correlator
Channel Step: 5.3 km s-1Observation Mode: Beam
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 210.0 arcsec × 228.0 arcsec
Mean Resolving Power: 27731.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 1024
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2018ApJ...861...49H
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

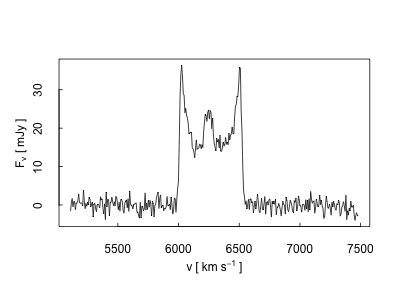

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII9.6kb
NED-ASCII45.7kb
VOTable43.0kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:PGC 035347PGC 035347
Position (J2000):11h28m50.38s+20d47m42.05s11h28m50.38s+20d47m42.05s
Origin:Literature
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
172.20989720.795014

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: GBT
Band (Line): Radio(H I)Instrument Name: Spectrograph
Start Channel: 5110.2 km s-1Disperser Type: N/A
End Channel: 7480.4 km s-1Detector Type: Correlator
Channel Step: 6.7 km s-1Observation Mode: Aperture
Spectral Resolution: 10.0 km s-1Aperture/Beam Size: 540.0 arcsec
Mean Resolving Power: 30611.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: N/ANumber of Pixels: 354
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 2009AJ....138.1938C
Notes: N/A

DSS Image & Aperture/Beam


PA = N/A

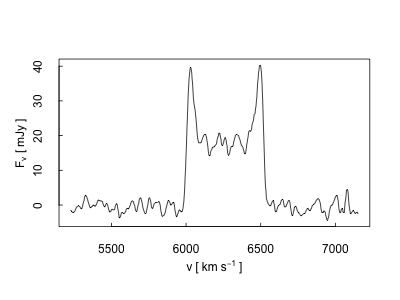

Spectrum Preview


Launch Specview Applet
from STScI

Retrieve Data

FITS N/A
Author-ASCII24.4kb
NED-ASCII84.4kb
VOTable79.1kb

OBJECT INFORMATION

Published Values NED Cross-Identified Values
Name:UGC 06479UGC 06479
Position (J2000):11h28m50.38s+20d47m42.05s11h28m50.38s+20d47m42.05s
Origin:Published-Value
System:Equatorial
Type:Decimal-Degrees
Equinox:J2000
172.20989720.795014

OBSERVATIONAL DETAILS

Observed Region: IntegratedTelescope Name: Arecibo 305m
Band (Line): Radio(H I)Instrument Name: Line-Feed system
Start Channel: 5226.4 km s-1Disperser Type: N/A
End Channel: 7153.1 km s-1Detector Type: Correlator
Channel Step: 2.9 km s-1Observation Mode: Aperture
Spectral Resolution: 11.0 km s-1Aperture/Beam Size: 198.0 arcsec
Mean Resolving Power: 27819.0Extracted Region Size: N/A
Seeing: N/APosition Angle of Slit:N/A
Airmass: N/ADimension of Spectrum: 1 D
Integration Time: 300 secNumber of Pixels: 656
Flux Units: mJyReference Frame: Observed
Flux Calibration: YesSensitivity Level: N/A
Absolute Calibration: YesBaseline Subtraction: Yes
Sky Subtraction: YesQuality Flag(s): N/A
Reference: 1985ApJS...59..161L
Notes: Profiles of new observations after Hanning smoothing. A polynominal baseline and occasional interference spikes have been removed.
