DSS Image & Aperture/Beam
PA = N/A

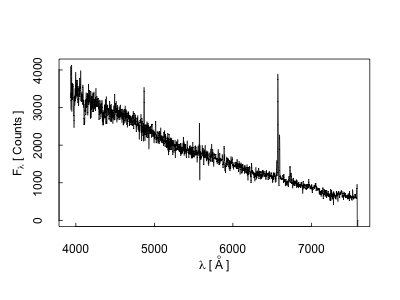

Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | g1336581-294826 | 6dF J1336581-294826 |
| Position (J2000): | 13h36m58.12s | -29d48m25.70s | 13h36m58.12s | -29d48m25.70s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.242167 | -29.807139 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | UKST |
| Band: | Optical | Instrument Name: | 6dF |
| Start Channel: | 3932.3 Å | Disperser Type: | Prism |
| End Channel: | 7597.0 Å | Detector Type: | CCD |
| Channel Step: | 1.6 Å | Observation Mode: | Fiber-Feed |
| Spectral Resolution: | 5.8 Å | Aperture/Beam Size: | 6.7 arcsec |
| Mean Resolving Power: | 1000.0 | Extracted Region Size: | N/A |
| Seeing: | 5.70 arcsec | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 2244 |
| Flux Units: | Counts | Reference Frame: | Observed |
| Flux Calibration: | No | Sensitivity Level: | N/A |
| Absolute Calibration: | No | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | 6 |
| Reference: | 2009MNRAS.399..683J | | |
| Notes: | NOTE: multiple spectra: highest quality presented; all spectra are included in FITS file. | |
DSS Image & Aperture/Beam
PA = N/A

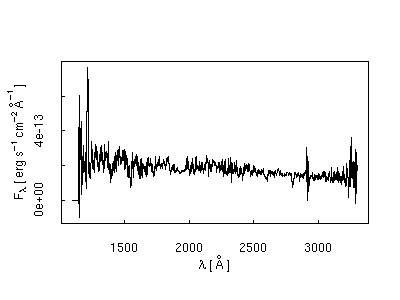

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC5236 | NGC 5236 |
| Position (J2000): | 13h37m00.23s | -29d52m04.45s | 13h37m00.92s | -29d51m56.70s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 13 34 11.0 | -29 36 48 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | IUE |
| Band: | UV | Instrument Name: | SWP + LWP and/or LWR |
| Start Channel: | 1100.2 Å | Disperser Type: | Cross-Disperser-Grating |
| End Channel: | 3299.2 Å | Detector Type: | SEC vidicon cam w/UV-converter |
| Channel Step: | 1.5 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 6.5 Å | Aperture/Beam Size: | 10.0 arcsec × 20.0 arcsec |
| Mean Resolving Power: | 338.4 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 1352 sec | Number of Pixels: | 1450 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 1993ApJS...86....5K | | |
| Notes: | Co-add of 1 short wavelength & 1 long wavelength IUE spectra | |
DSS Image & Aperture/Beam
PA = N/A

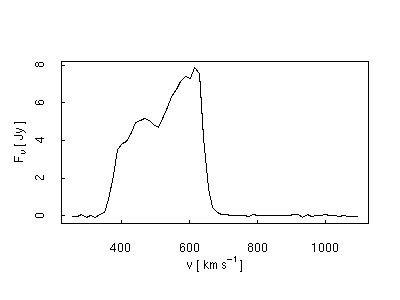

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |

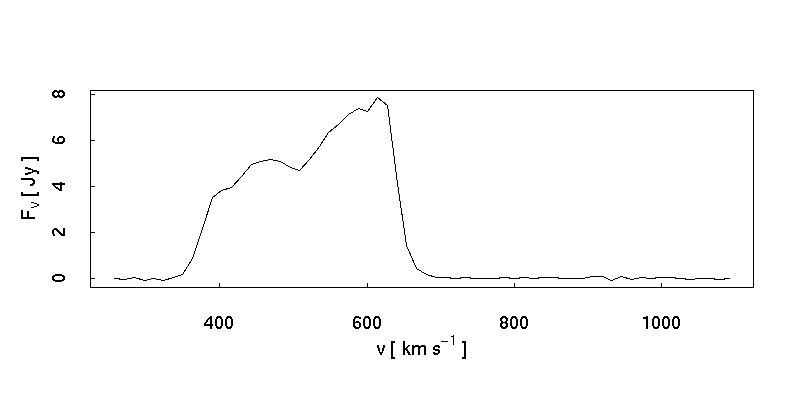

| Name: | HIPASS J1337-29 | HIPASS J1337-29 |
| Position (J2000): | 13h37m02.00s | -29d55m03.00s | 13h37m00.92s | -29d51m56.70s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | J2000 |
| 13 37 02 | -29 55 03 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Parkes |
| Band (Line): | Radio(H I) | Instrument Name: | 21 cm Multibeam Receiver |
| Start Channel: | 257.3 km s-1 | Disperser Type: | N/A |
| End Channel: | 1092.1 km s-1 | Detector Type: | Correlator |
| Channel Step: | 13.0 km s-1 | Observation Mode: | N/A |
| Spectral Resolution: | 18.0 km s-1 | Aperture/Beam Size: | 930.0 arcsec |
| Mean Resolving Power: | 16695.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 64 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | 40 mJy beam-1 (3 &sigma) |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | N/A | Quality Flag(s): | N/A |
| Reference: | 2004AJ....128...16K | | |
| Notes: | Extended & confused source. | |
DSS Image & Aperture/Beam
PA = 90 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.30s | -29d51m51.00s | 13h37m00.95s | -29d51m55.50s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagecimal | | Equinox: | J2000 |
| 13h37m00.3s | -29d51m51s | |
OBSERVATIONAL DETAILS

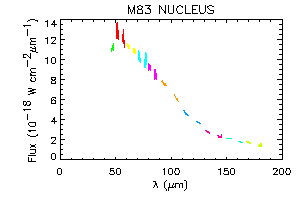

| Observed Region: | Integrated | Telescope Name: | ISO |
| Band: | Far-IR | Instrument Name: | LWS |
| Start Channel: | 46.5 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 181.6 μm | Detector Type: | CCD |
| Channel Step: | 0.3 μm | Observation Mode: | Aperture |
| Spectral Resolution: | 8.0 μm | Aperture/Beam Size: | 75.0 arcsec |
| Mean Resolving Power: | 143000.0 | Extracted Region Size: | N/A |
| Seeing: | 1.40 arcsec | Position Angle of Slit: | 90 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | 1800 sec | Number of Pixels: | 1191 |
| Flux Units: | W cm-2 um-1 | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2008ApJS..178..280B | | |
| Notes: | LWS L02 LINE observing mode; more observations are available | |
DSS Image & Aperture/Beam
PA = 0 deg

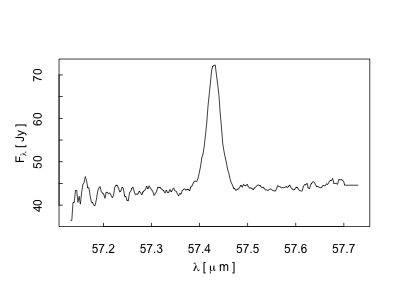

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

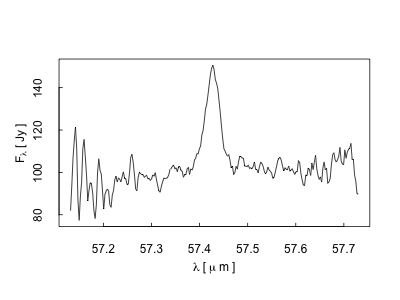

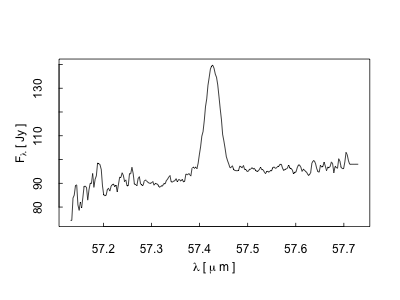

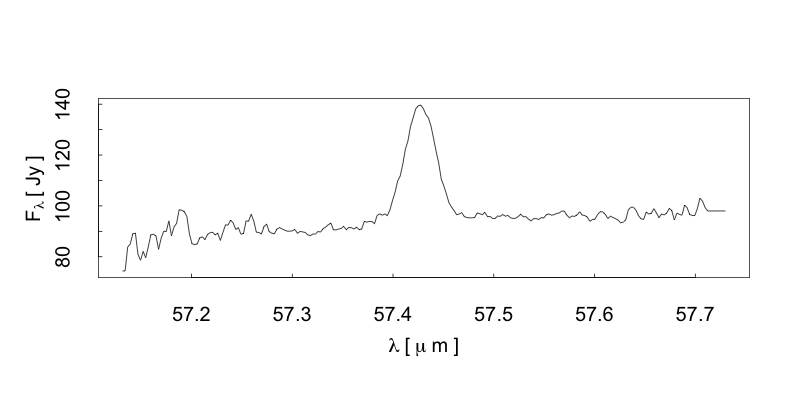

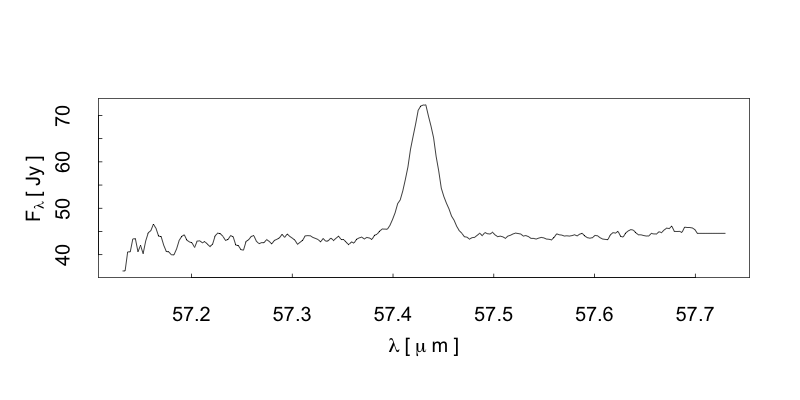

| Band (Line): | Far-IR([NIII] 57μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 57.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 57.7 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.5e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.1e-02 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 2730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 236 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg

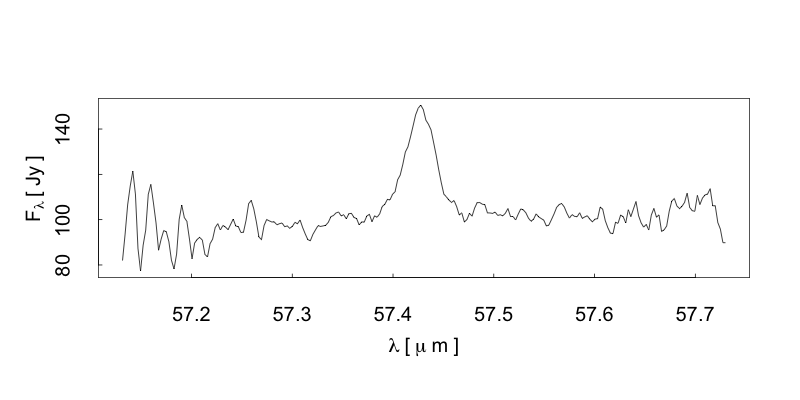

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NIII] 57μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 57.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 57.7 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.5e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.1e-02 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 2730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 236 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NIII] 57μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 57.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 57.7 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.5e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.1e-02 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 2730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 236 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

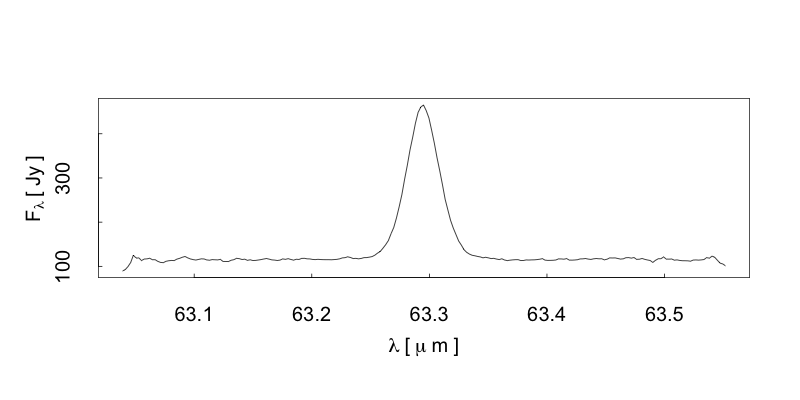

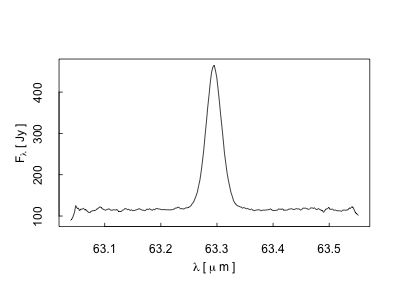

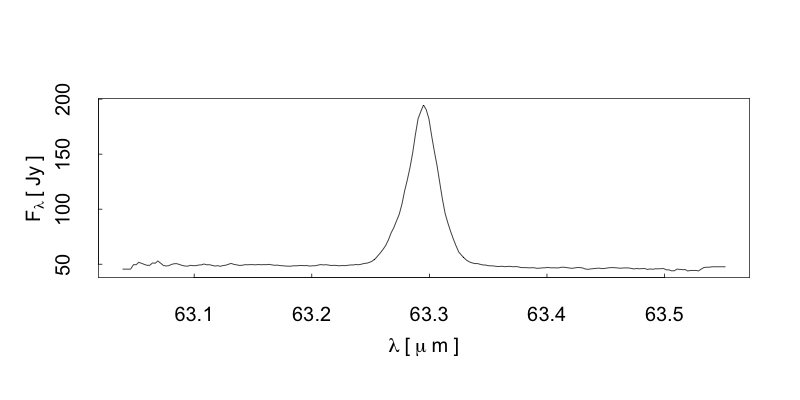

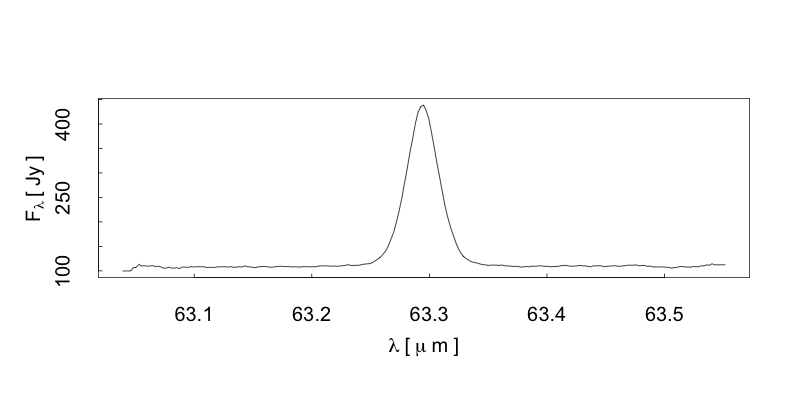

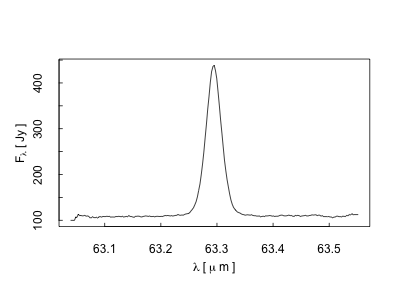

| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 3160.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg

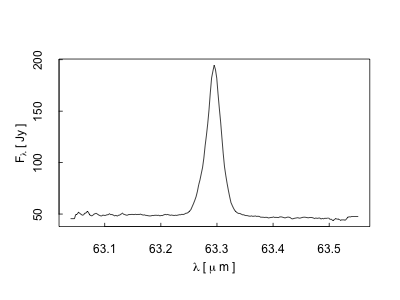

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 3160.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 63μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 63.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 63.6 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 2.3e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 2.0e-02 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 3160.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 224 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

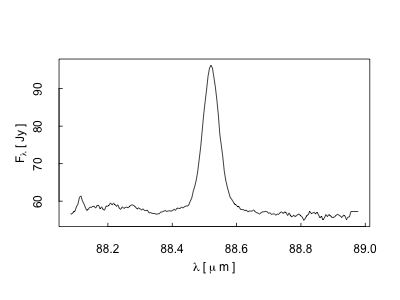

| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.0 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 196 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

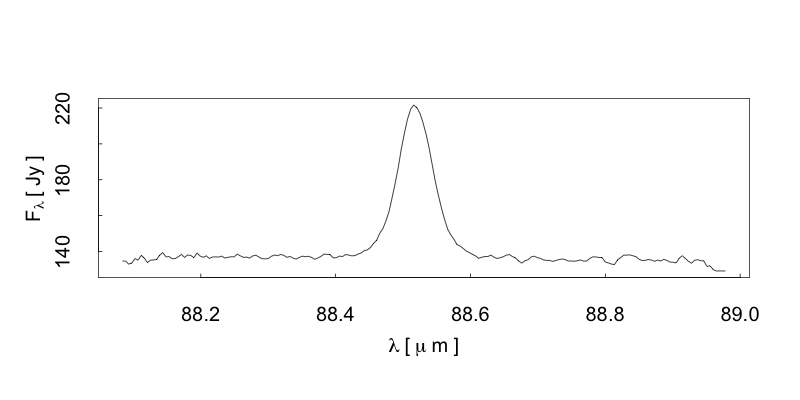

| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.0 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 196 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

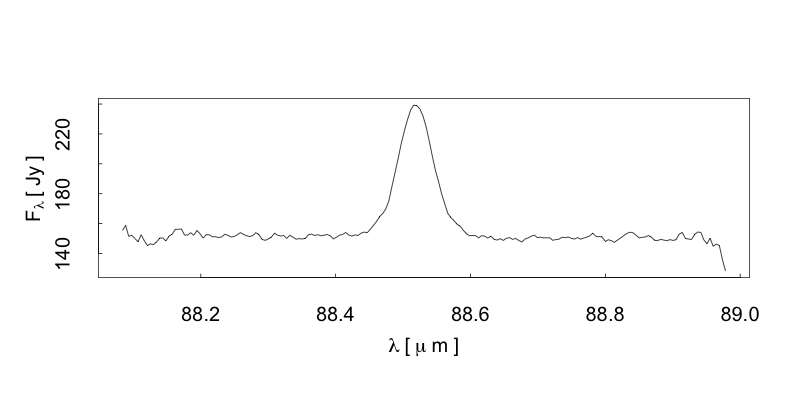

| Band (Line): | Far-IR([OIII] 88μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 88.1 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 89.0 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 4.6e-03 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 3.7e-02 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 2390.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 196 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 180 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

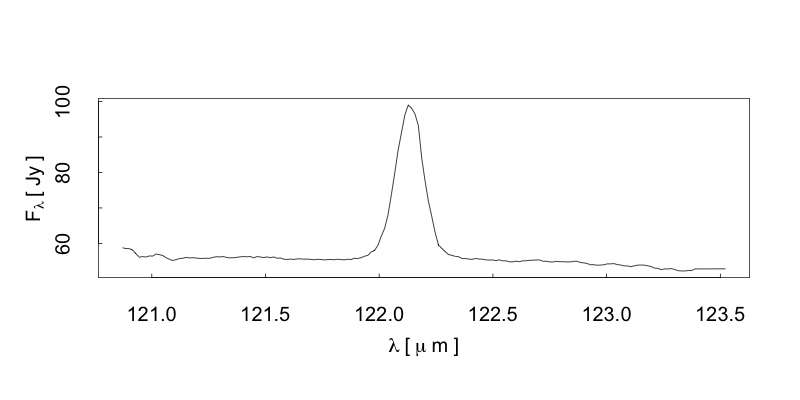

| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 180 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([NII] 122μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 120.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 123.5 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.5e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1020.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 180 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

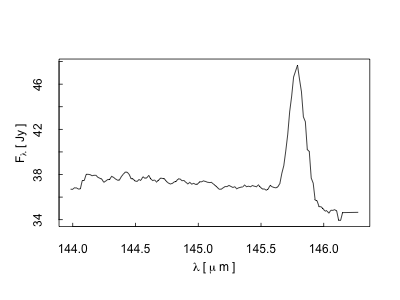

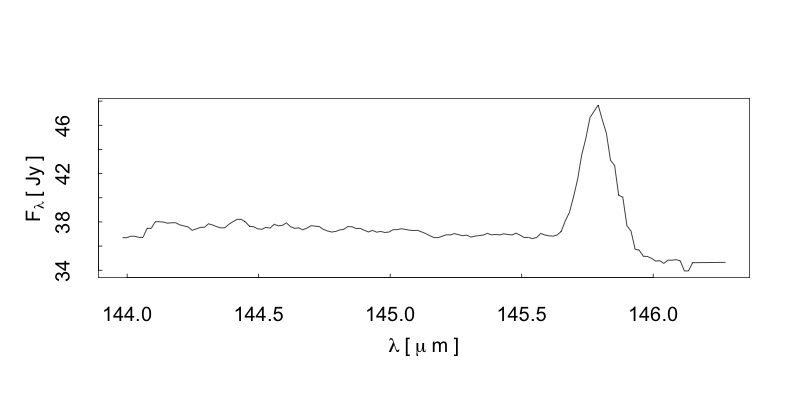

| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 146.3 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1230.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

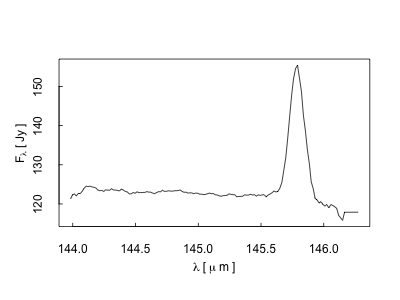

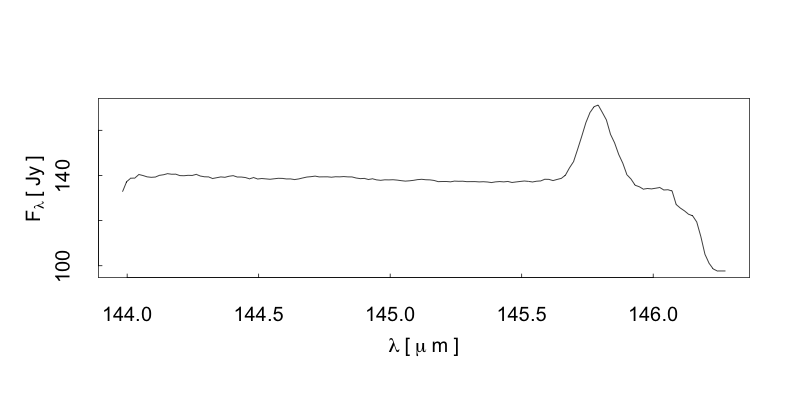

| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 146.3 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1230.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg

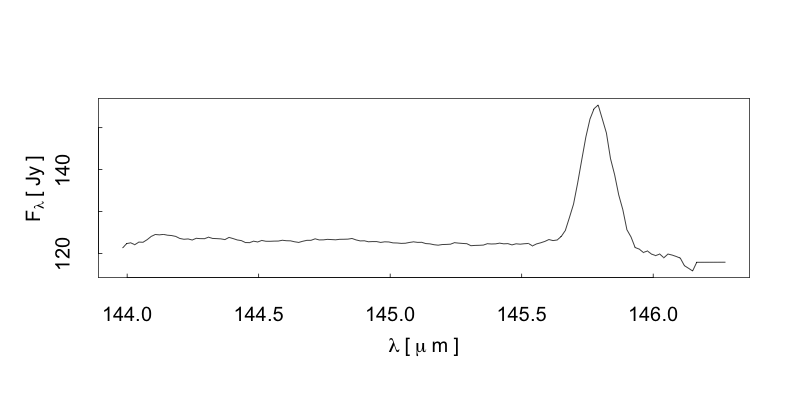

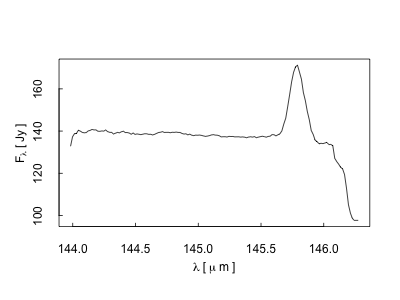

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([OI] 145μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 144.0 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 146.3 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1230.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |

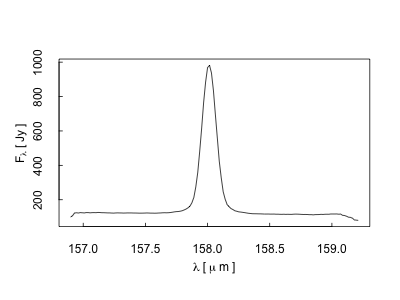

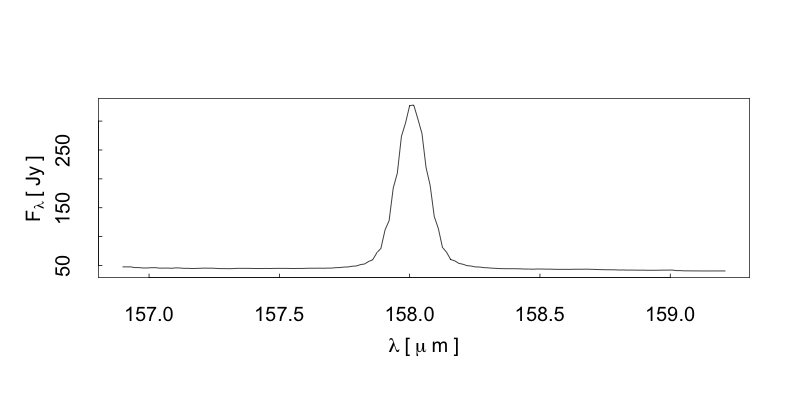

| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.2 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 28.2 arcsec × 28.2 arcsec |
| Mean Resolving Power: | 1250.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg

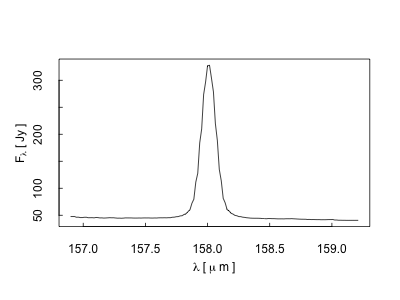

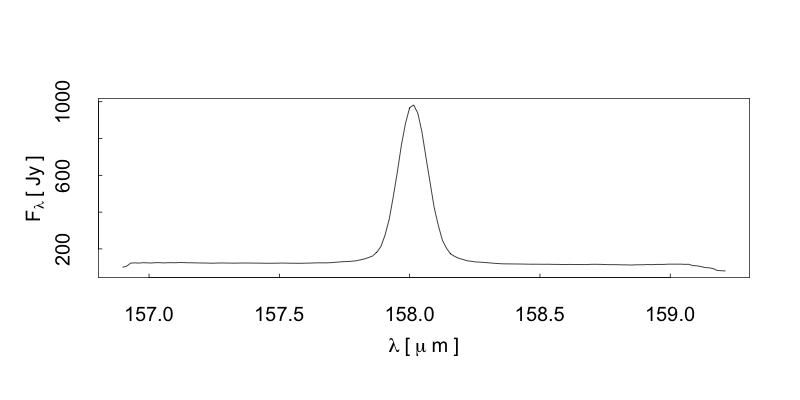

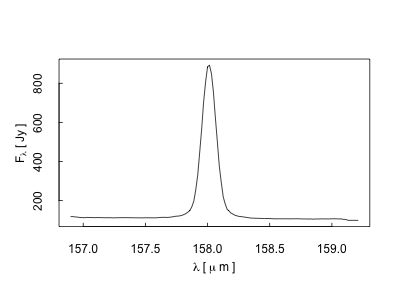

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.2 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 47.0 arcsec × 47.0 arcsec |
| Mean Resolving Power: | 1250.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 0 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | MESSIER 083 | MESSIER 083 |
| Position (J2000): | 13h37m00.92s | -29d51m56.70s | 13h37m00.95s | -29d51m55.50s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 204.253833 | -29.865750 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Herschel |
| Band (Line): | Far-IR([CII] 158μm) | Instrument Name: | PACS-IFU |
| Start Channel: | 156.9 μm | Disperser Type: | Blazed-Grating |
| End Channel: | 159.2 μm | Detector Type: | Photoconductor Arrays |
| Channel Step: | 1.6e-02 μm | Observation Mode: | Integral-Field |
| Spectral Resolution: | 0.1 μm | Aperture/Beam Size: | 9.4 arcsec × 9.4 arcsec |
| Mean Resolving Power: | 1250.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | 0 deg |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 148 |
| Flux Units: | Jy | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2016ApJS..226...19F | | |
| Notes: | N/A | |
