DSS Image & Aperture/Beam
PA = 15 deg

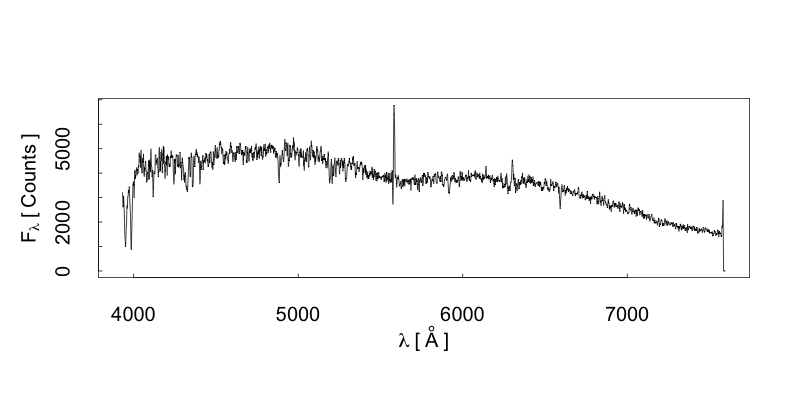

Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.56s | +80d10m41.87s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 07 18 28 | +80 16 36 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Palomar 200in |
| Band: | Optical | Instrument Name: | Double Spectrograph |
| Start Channel: | 4218.9 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 5083.5 Å | Detector Type: | CCD |
| Channel Step: | 1.0 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 4.0 Å | Aperture/Beam Size: | 2.0 arcsec × 128.0 arcsec |
| Mean Resolving Power: | 1162.8 | Extracted Region Size: | 2.0 arcsec × 4.00 arcsec |
| Seeing: | 1.00 arcsec | Position Angle of Slit: | 15 deg |
| Airmass: | 1.48 | Dimension of Spectrum: | 1 D |
| Integration Time: | 1600 sec | Number of Pixels: | 872 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1995ApJS...98..477H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 90 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.05s | +80d10m41.10s | 07h27m04.05s | +80d10m41.10s |
| Origin: | FITS-Header | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | J2000 |
| 07:27:04.05 | +80:10:41.1 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Cassini 1.5m |
| Band: | Optical | Instrument Name: | BFOSC |
| Start Channel: | 6000.0 Å | Disperser Type: | Grism_8 |
| End Channel: | 7471.6 Å | Detector Type: | CCD |
| Channel Step: | 1.6 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 6.0 Å | Aperture/Beam Size: | 2.0 arcsec × 698.0 arcsec |
| Mean Resolving Power: | 1120.0 | Extracted Region Size: | N/A |
| Seeing: | 2.50 arcsec | Position Angle of Slit: | 90 deg |
| Airmass: | 1.08 | Dimension of Spectrum: | 1 D |
| Integration Time: | 369 sec | Number of Pixels: | 920 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | 0 |
| Reference: | 2013A&A...558A..68G | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = 15 deg
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.56s | +80d10m41.87s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Sexagesimal | | Equinox: | B1950 |
| 07 18 28 | +80 16 36 | |
OBSERVATIONAL DETAILS
| Observed Region: | Nucleus | Telescope Name: | Palomar 200in |
| Band: | Optical | Instrument Name: | Double Spectrograph |
| Start Channel: | 6170.0 Å | Disperser Type: | Blazed-Grating |
| End Channel: | 6811.0 Å | Detector Type: | CCD |
| Channel Step: | 1.0 Å | Observation Mode: | Long-Slit |
| Spectral Resolution: | 2.5 Å | Aperture/Beam Size: | 2.0 arcsec × 128.0 arcsec |
| Mean Resolving Power: | 2596.2 | Extracted Region Size: | 2.0 arcsec × 4.00 arcsec |
| Seeing: | 1.00 arcsec | Position Angle of Slit: | 15 deg |
| Airmass: | 1.48 | Dimension of Spectrum: | 1 D |
| Integration Time: | 1600 sec | Number of Pixels: | 642 |
| Flux Units: | erg s-1 cm-2 Å-1 | Reference Frame: | Rest |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | N/A |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1995ApJS...98..477H | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | UGC 03809 | UGC 03809 |
| Position (J2000): | 07h27m04.05s | +80d10m41.10s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 111.766875 | 80.178083 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 1571.0 km s-1 | Disperser Type: | N/A |
| End Channel: | 2835.7 km s-1 | Detector Type: | Correlator |
| Channel Step: | 3.4 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 11.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 27456.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 373 |
| Flux Units: | 0.01K | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1988ApJS...67....1T | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.05s | +80d10m41.10s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 111.766875 | 80.178083 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | NRAO 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 1744.3 km s-1 | Disperser Type: | N/A |
| End Channel: | 2692.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 2.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 22.0 km s-1 | Aperture/Beam Size: | 600.0 arcsec |
| Mean Resolving Power: | 13730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 384 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1978A&A....68..321S | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Launch Specview Applet
from STScI
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.05s | +80d10m41.10s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 111.766875 | 80.178083 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | Green Bank 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 1752.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 2686.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 1.5 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 22.0 km s-1 | Aperture/Beam Size: | 642.0 arcsec |
| Mean Resolving Power: | 13730.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 613 |
| Flux Units: | Jy | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1980A&AS...41..189R | | |
| Notes: | N/A | |
DSS Image & Aperture/Beam
PA = N/A
Spectrum Preview
Retrieve Data
|
OBJECT INFORMATION
|
Published Values |
NED Cross-Identified Values |
| Name: | NGC 2336 | NGC 2336 |
| Position (J2000): | 07h27m04.05s | +80d10m41.10s | 07h27m04.05s | +80d10m41.10s |
| Origin: | Published-Value | | System: | Equatorial | | Type: | Decimal-Degrees | | Equinox: | J2000 |
| 111.766875 | 80.178083 | |
OBSERVATIONAL DETAILS
| Observed Region: | Integrated | Telescope Name: | NRAO 91m |
| Band (Line): | Radio(H I) | Instrument Name: | Autocorrelator |
| Start Channel: | 1836.7 km s-1 | Disperser Type: | N/A |
| End Channel: | 2663.3 km s-1 | Detector Type: | Correlator |
| Channel Step: | 2.2 km s-1 | Observation Mode: | Beam |
| Spectral Resolution: | 6.6 km s-1 | Aperture/Beam Size: | 600.0 arcsec |
| Mean Resolving Power: | 45766.0 | Extracted Region Size: | N/A |
| Seeing: | N/A | Position Angle of Slit: | N/A |
| Airmass: | N/A | Dimension of Spectrum: | 1 D |
| Integration Time: | N/A | Number of Pixels: | 384 |
| Flux Units: | Temprature (K) | Reference Frame: | Observed |
| Flux Calibration: | Yes | Sensitivity Level: | N/A |
| Absolute Calibration: | Yes | Baseline Subtraction: | Yes |
| Sky Subtraction: | Yes | Quality Flag(s): | N/A |
| Reference: | 1978ApJ...223..391D | | |
| Notes: | N/A | |
